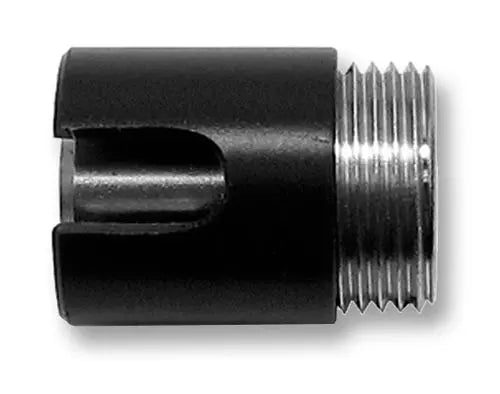

VIAVI FBPT-ST Standard Bulkhead Tip, ST

Overview

The VIAVI FBPT-ST is a precision-engineered standard bulkhead inspection tip designed for use with VIAVI video fiber microscopes. It is specifically built to interface with ST-style fiber optic connectors, enabling accurate inspection of bulkhead end-faces.

This tip facilitates clear, high-resolution imaging of fiber connector ferrules, ensuring technicians can identify contaminants or defects that may impact signal integrity. Constructed for durability and repeatable performance, it is an essential component for fiber optic network maintenance, installation, and troubleshooting in data centers and telecommunication environments.

Key Features

• Precision ST Interface
  Specifically designed for secure coupling with ST bulkhead connectors, ensuring accurate alignment during inspection.
• Durable Construction
  Engineered to withstand repeated use in field environments, maintaining consistent optical performance over time.
• High-Resolution Imaging Support
  Provides a clear view of the fiber end-face, allowing for the precise identification of dust, oils, or scratches.
• Easy Installation
  Designed for quick and simple attachment to the fiber microscope probe, minimizing downtime for technicians.
• Optimized for Bulkhead Inspection
  Specifically shaped to reach recessed connector ferrules in bulkhead adapters, ensuring comprehensive cleaning verification.
• Essential Maintenance Tool
  Helps prevent network degradation by ensuring connectors are clean before mating, reducing potential signal loss.

Applications

• Fiber optic network maintenance and troubleshooting
• Data center infrastructure inspections
• Installation of ST-based fiber optic cabling systems
• Quality control during fiber termination

Technical Specifications

Frequently Asked Questions

Is this tip compatible with all VIAVI microscopes?
It is designed for the VIAVI FBP series video fiber microscopes. Please verify your specific model documentation to confirm compatibility.

Can I use this for patch cords?
This tip is specifically designed for bulkhead (adapter) inspection. Patch cord tips typically require a different adapter configuration.

How do I clean the tip?
Use only approved fiber optic inspection cleaning supplies and follow the maintenance guidelines provided in your microscope's user manual.

Is this TAA compliant?
No, this product is non-TAA compliant.

What does the 2.5mm measurement refer to?
This refers to the diameter of the ST connector ferrule that the tip is designed to inspect.
