Overview

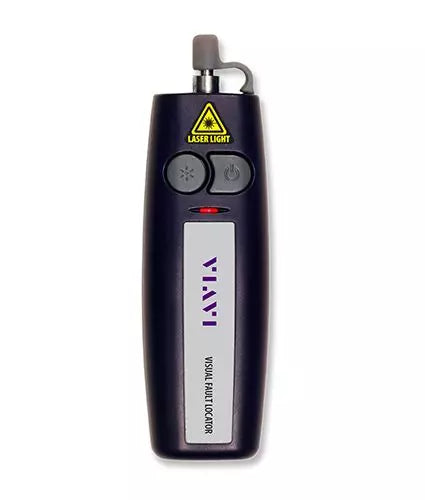

The VIAVI FFL-050 is a precision visual fault locator (VFL) designed to identify physical layer issues in fiber optic networks. It utilizes a high-intensity 650-nm red laser to pinpoint sharp bends, breaks, and damaged sections of fiber, enabling technicians to quickly troubleshoot and restore connectivity. The device is housed in a compact, ergonomic chassis suited for field operations.
Engineered for versatility, this VFL supports both single-mode and multimode fiber testing. It features a universal 2.5mm connector interface, making it compatible with common industry connectors such as ST, SC, and FC. The tool supports both continuous and flashing illumination modes for distinct fiber identification in high-density patches or complex network environments.
Key Features
-
Universal Connector Interface
Features a 2.5mm input compatible with ST, SC, and FC connectors, ensuring versatile connectivity across different fiber types. -
650nm Visible Laser
Utilizes a 650-nm red laser for high-visibility light emission to simplify fiber tracing and fault identification. -
Dual Operation Modes
Supports continuous or flashing illumination to adapt to various diagnostic and identification scenarios. -
Extended Range Capabilities
Capable of testing single-mode fibers over 7 km and multimode fibers over 5 km, suitable for diverse network lengths. -
Compact Ergonomic Chassis
Designed for portability in the field, allowing technicians to carry it easily between job sites. -
Included Protective Case
Ships with a soft-sided carrying case featuring a belt loop for convenient hands-free transport.
Applications
- Locating sharp bends, breaks, and damages in fiber
- End-to-end continuity testing
- Fiber tracing and port identification
Package Contents
- VIAVI FFL-050 Visual Fault Locator
- Batteries
- Soft-sided carrying case with belt loop
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | FFL-050 |
| Operating Wavelength | 650 nm |
| Interface | 2.5mm Universal |
| Max Output Power | 1 mW |
| Single-mode Range | > 7 km |
| Multimode Range | > 5 km |
| Laser Class | Class 2 |
Frequently Asked Questions
What connectors does the FFL-050 support?
The FFL-050 features a 2.5mm interface that supports ST, SC, and FC fiber optic connectors.
Can this device be used on both single-mode and multimode fiber?
Yes, it is designed for both single-mode and multimode fiber testing.
What is the maximum range for this VFL?
The VFL has a range of over 7 km for single-mode fiber and over 5 km for multimode fiber.
What laser modes are available?
The device supports both continuous and flashing illumination modes.
Does it come with a carrying case?
Yes, it includes a soft-sided carrying case with a belt loop.
