Viavi FI-60 Live Optical Fiber Identifier with 2.5mm and 1.25mm OPM Connector
Viavi FI-60 Live Optical Fiber Identifier with 2.5mm and 1.25mm OPM Connector
Live Fiber Identifier easily identifies the optical signal without having to disconnect the fiber or disrupt network traffic. Also converts to an Optical Power Meter (OPM).

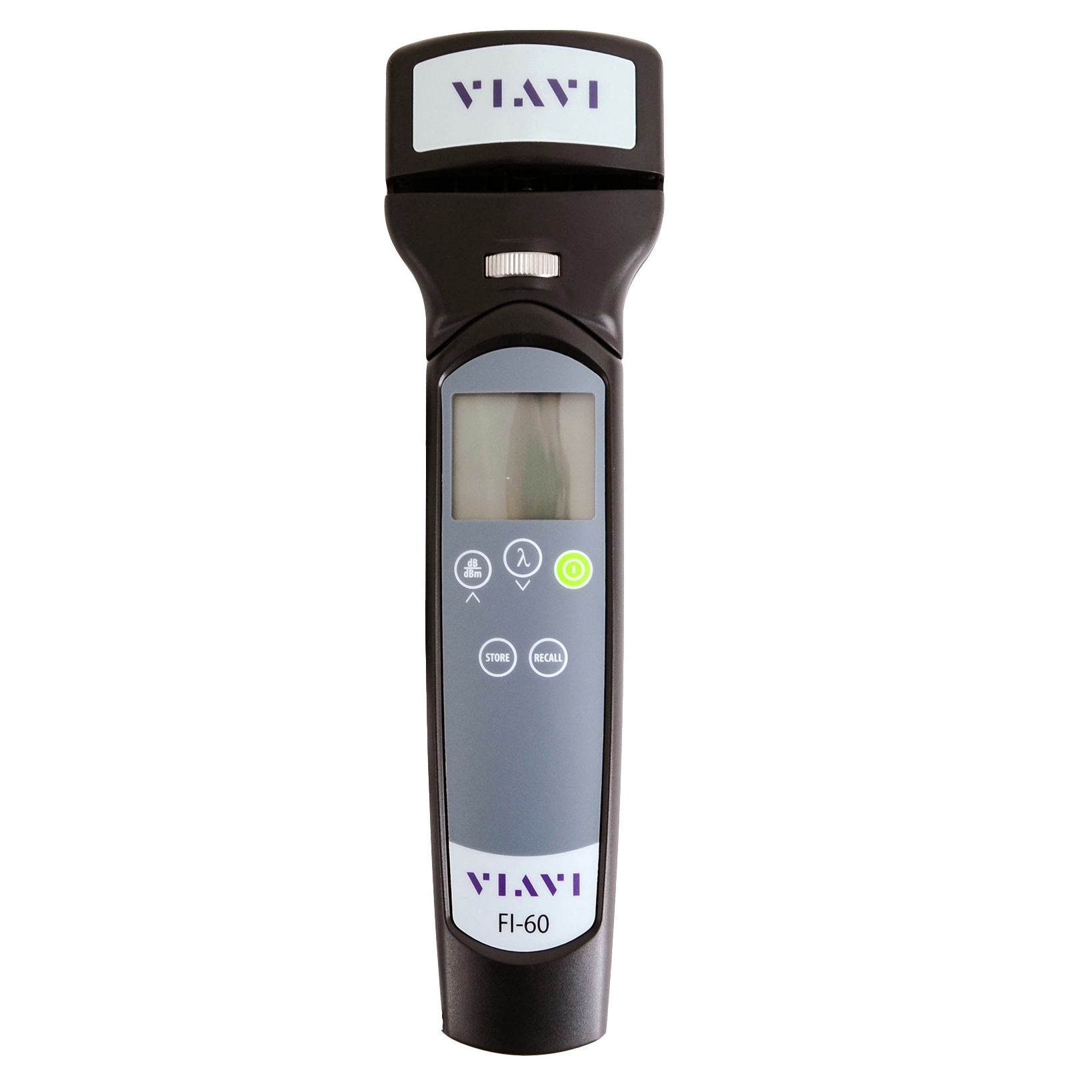

The Viavi FI-60 LFI enables users to easily detect the optical signal without disconnecting fiber or disrupting network traffic. The FI-60 LFI also includes the unique Viavi SafeChekTM system, which ensures safe and repeatable engagement with most fiber types without the hassle of changing out costly dice.
The FI-60 also converts to an Optical Power Meter (OPM), providing twice the value for your investment and reducing the number of tools carried on the job.
Inadvertently disconnecting active fiber during installation, test and troubleshooting is a common cause of dropped service. The new FI-60 LFI enables users to easily detect the optical signal without having to disconnect the fiber or disrupt network traffic.
The unique Viavi Solution® SafeChekTM system ensures safe and repeatable engagement with most fiber types, without the hassle of changing out costly dies.

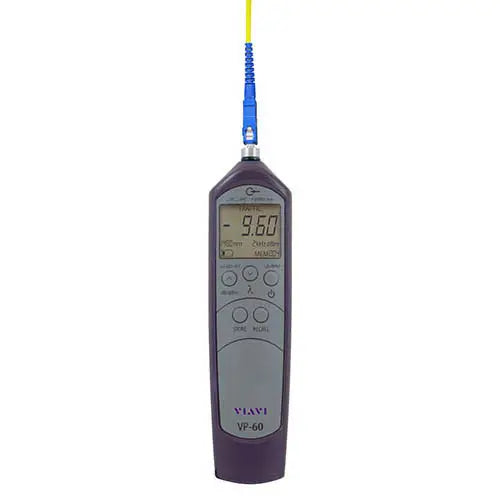

The FI-60 easily converts to an Optical Power Meter (OPM), providing twice the value for your investment and reducing the number of tools you have to carry on the job. Simply remove the LFI head attachment, connect the corresponding adapter (2.5 or 1.5mm) and insert a connector to measure power.
This versatile tool can display, store, and recall optical power measurements for each of the selectable wavelengths. Users can download the stored data onto a PC via USB. The FI-60 also interfaces with FiberChek2, providing integrated inspection and OPM testing and reporting capabilities.
Key Benefits
- Avoid network downtime and damage with repeatable SafeChek™ easy-pull trigger system.
- Get the job done faster with a single LFI head that is compatible with multiple cable diameters (250μm to 3mm jacketed fibers).
- Increase reliability and avoid false readings with integrated ambient light shield.
- Access cable in multiple environments with the compact, ergonomic design.
- Easily convert to a full function OPM that stores, recalls, and exports results to a PC via USB
Key Features
- SafeChek easy-pull trigger system ensures repeatable engagement with fiber cable
- LFI head accepts multiple cable diameters (250μm to 3mm jacketed fibers
- Durable metal input adapters (2.5 and 1.25mm) for OPM yy Measure both absolute (dBm) and relative (dB) power
- Store and recall up to 100 OPM readings
Features and Components
Features:
- Avoid network downtime and damage with repeatable SafeChekTM easy-pull trigger system.
- Get the job done faster with a single LFI head that is compatible with multiple cable diameters (250µm to 3mm jacketed fibers).
- The FI-60 LFI easily converts to a full-function OPM that stores, recalls, and exports results to a PC via USB.
- Download Viavi FI-60 spec sheet PDF
Applications:
- Easily detect the optical signal without having to disconnect the fiber.
- Installation, service, maintenance, or troubleshooting
- Integrate with FiberChek2 for combined inspection and test reporting.
- Check polarity and operation of patch cords.
Key Features:
- SafeChek easy-pull trigger system ensures repeatable engagement with fiber cable
- LFI head accepts multiple cable diameters (250μm to 3mm jacketed fibers
- Durable metal input adapters (2.5 and 1.25mm) for OPM
- Measure both absolute (dBm) and relative (dB) power
- Store and recall up to 100 OPM readings
Specifications
General
- Power source 2 x AA alkaline batteries
- Wavelength range 780 to 1800 nm
- Battery life > 70 hours
- USB type 2.0
- Screen size (W x H) 3.7 x 3.1 cm
- Storage temperature –20 to 70° C
- Operating temperature 0 to 50° C
LFI
- Dimensions 216 x 60 x 38 mm (8.5 x 2.35 x 1.5 in)
- Weight 135 g (4.8 oz) with two AA alkaline batteries
- Detection sensitivity –20 dBm @ 1310 nm, -30 dBm @ 1550 nm
- Insertion loss (typical) 1310 nm: < .2 dB, 1550 nm: < 2 dB
- Detected wavelengths 850 to 1700 nm
- Detected tones 270 Hz, 330 Hz, 1 kHz, 2 kHz
- Standard cable diameter range 250 μm - 3 mm
OPM
- Dimensions 171 x 42 x 25 mm (6.8 x 1.7 x 1.4 in)
- Weight 100 g (3.5 oz) with two AA alkaline batteries
- Connector input 1.25 mm and 2.5 mm available
- Measurement types dB, dBm
- Detectable optical power range –65 dBm to +10 dBm
- Max. permitted input level +23 dBm
- Intrinsic uncertainty ±0.20 dB (± 5%) Linearity1 ±0.06 dB (–50 dBm to +5 dBm) Standard wavelength settings 850, 980, 1300, 1310, 1490, 1550, 1625 nm Wavelength and modulation 270 Hz, 330 Hz, 1 kHz, 2 kHz
- 1300, 1310, 1490, 1550, 1625 nm –60 to +10 dBm
- 850, 980 nm –55 to +10 dBm
Ordering Information
Part Number FI-60 Live Fiber Identifier with removable LFI attachment, 2.5 mm and 1.25mm OPM connector interfaces; USB cable; software; carrying case
Part Number VP-60A Optical Power Meter with 2.5 mm and 1.25 mm connector interfaces; USB cable; software; carrying case
Part Number VP-60 Optical Power Meter with 2.5 mm connector interface; USB cable; software; carrying case
Part Number VPP-LFI Attachment Head; Live Fiber Identifier, connects to VP-60
Part Number VPP-UPP12 Adapter, for 1.25mm (LC, MU) for VP Series OPM
Part Number VPP-IPP25 Adapter, for 2.5mm (FC, SC, ST) for VP Series OPM
