Overview

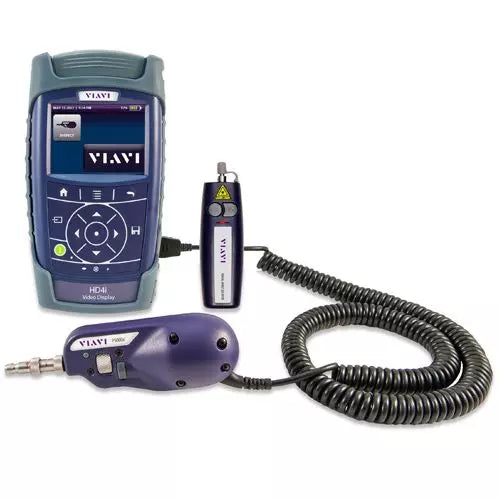

The VIAVI FIT-8201-PRO SmartClass Fiber™ OLP-82 Pro Kit is an integrated testing solution designed for the inspection, certification, and power measurement of fiber optic end-faces. By combining a P5000i digital fiber inspection microscope with an optical power meter (OPM), the kit provides automated pass/fail analysis that adheres to industry standards, ensuring consistent quality control in fiber network installation and maintenance.
The system features a 3.5-inch color touch screen and an intuitive user interface, allowing technicians to quickly inspect connector end-faces and measure optical power across calibrated wavelengths from 780nm to 1625nm. Its automated capabilities, including image centering and standardized analysis, reduce the potential for human error. Test results are easily managed through on-device storage or by exporting data via USB to a PC for comprehensive reporting using FiberChekPRO™ software.
Key Features
-
Automated Pass/Fail Analysis
Performs end-face inspection against industry standards to eliminate subjective guesswork during certification. -
Integrated Optical Power Meter
Measures power levels across calibrated wavelengths ranging from 780nm to 1625nm for versatile network testing. -
P5000i Digital Microscope
Provides high-resolution digital imaging of fiber connectors for accurate inspection of scratches and debris. -
3.5" Color Touch Screen
Offers a clear, interactive interface for easy navigation and real-time viewing of inspection results. -
Automatic Image Centering
Ensures that the fiber core is correctly positioned for analysis, speeding up the testing workflow. -
Report Generation
Compatible with FiberChekPRO software for professional-grade documentation and data management. -
Extended Connectivity
Includes multiple USB interfaces for flexible data transfer and integration with external devices.
Applications
- Fiber network certification
- Connector end-face inspection
- Optical power measurement
- Network troubleshooting and maintenance
Package Contents
- FIT-8201-PRO Main Unit
- P5000i Digital Inspection Microscope
- Inspection tips and adapters (LC/PC and SC/PC)
- 2.5mm and 1.25mm UPP OPM adapters
- FiberChekPRO software
- Visual fault locator
- USB cable
- Cleaning materials (2.5mm and 1.25mm)
- Power supply
- Rechargeable Li-ion battery and 8x AA batteries
- Hands-free carrier
- Carry case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | FIT-8201-PRO |
| Display | 3.5-inch Color Touch Screen |
| Calibrated Wavelengths | 780nm to 1625nm |
| Interfaces | 2x USB 2.0, 1x micro-USB |
Frequently Asked Questions
Does this kit include software for reporting?
Yes, it includes FiberChekPRO software to generate certification reports.
What connectors are supported for inspection?
The kit includes inspection tips and adapters for LC/PC and SC/PC connectors.
Can I export test results?
Yes, test results can be stored on the device and exported to a PC via USB.
What is the wavelength range of the OPM?
The optical power meter is calibrated for wavelengths from 780nm to 1625nm.
What type of batteries are used?
The kit operates on 8x AA batteries or the provided rechargeable Li-ion battery.
