Overview

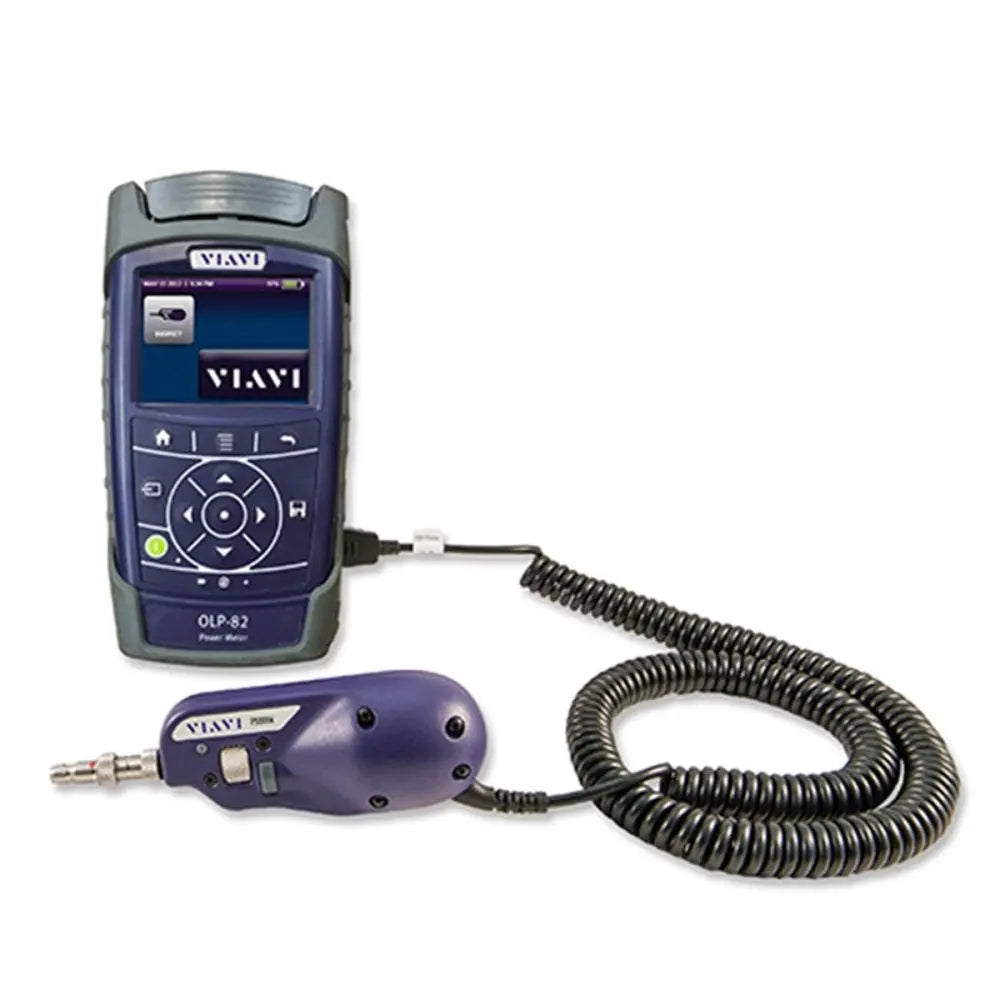

The VIAVI SmartClass™ FIT-8201 OLP-82 Basic Kit is a comprehensive test solution designed for the inspection and certification of fiber optic end-face quality and precise optical power measurement. This integrated toolset allows technicians to ensure network performance by automating the inspection process and verifying optical power levels across multiple calibrated wavelengths.
Engineered for efficiency in field environments, the unit features a high-resolution 3.5-inch color touch screen and an intuitive user interface. It simplifies complex testing tasks by providing automated pass/fail analysis aligned with industry standards, alongside automatic image centering to streamline workflow. Designed for versatility, this kit supports both result storage on the device and seamless data export to a PC for detailed certification reporting.
Key Features
-
Integrated Inspection and Power Metering
Combines a digital video display, P5000i probe microscope, and OPM in one device, reducing the number of tools required for fiber certification. -
Automated Pass/Fail Analysis
Eliminates subjective human error by providing standardized, automated inspection results based on industry criteria. -
Wide Wavelength Calibration
Supports precise power measurements across a broad range from 780nm to 1625nm, ensuring compatibility with diverse fiber network infrastructures. -
Intuitive Touch Screen Interface
Features a 3.5-inch color display with touch functionality for faster navigation and simpler test execution in the field. -
Automated Image Centering
Reduces setup time and improves accuracy by automatically positioning the fiber image for inspection. -
Comprehensive Connectivity
Equipped with dual USB2 ports and a micro-USB interface for easy data transfer and software updates. -
FiberChekPRO Software Support
Enables professional reporting and advanced documentation of test results via PC connectivity.
Applications
- Fiber optic end-face inspection and cleaning verification
- Optical power measurement for fiber network maintenance
- Network certification to industry standards
- Data center fiber link troubleshooting
Package Contents
- SmartClass OLP-82 main unit
- P5000i inspection microscope
- Inspection tips and adapters
- 1.25mm OPM adapter
- USB-A to Micro-USB cable
- FiberChekPRO software
- Power supply
- 8x AA batteries
- Carrying case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | FIT-8201 |
| Display | 3.5" Color Touch Screen |
| Operating Wavelengths | 780nm to 1625nm |
| Connectivity | 2x USB 2.0, 1x Micro-USB |
Frequently Asked Questions
What is the primary function of the FIT-8201?
It is a combination tool for inspecting fiber end-faces and measuring optical power, used to certify fiber link quality.
Can I export data for reporting?
Yes, the unit allows for data export via USB to a PC, where FiberChekPRO software generates professional certification reports.
Does this kit include everything needed to start testing?
Yes, the kit is fully equipped with the main unit, inspection microscope, power supply, batteries, adapters, and a carry case.
Is the pass/fail analysis customizable?
Yes, the system supports both industry-standard pass/fail criteria and user-defined settings.
What wavelengths does the OPM support?
The integrated power meter is calibrated for wavelengths ranging from 780nm to 1625nm.
