Overview

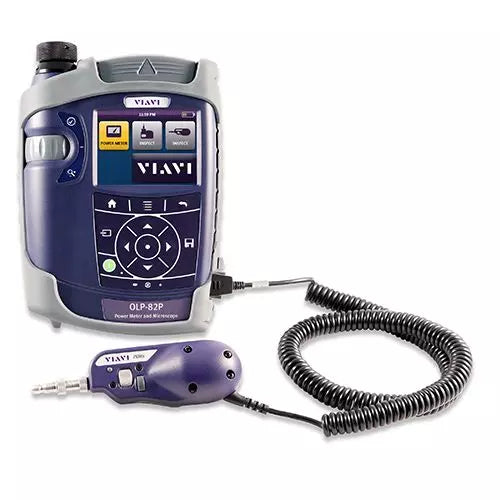

The VIAVI FIT-82P01 SmartClass OLP-82P Basic Kit is a comprehensive fiber testing solution designed for the inspection, certification, and power measurement of fiber optic connections. This kit combines a digital fiber inspection microscope, a dedicated Patch Cord Microscope (PCM), and an Optical Power Meter (OPM) into a single, portable unit to ensure high-quality, reliable network performance.
Equipped with a 3.5-inch color touch screen, the device allows for automated pass/fail analysis of fiber end-faces in accordance with industry standards. It is ideal for field technicians and data center operators requiring precise, automated, and repeatable measurements. Results can be stored internally or exported via USB for documentation and compliance reporting.
Key Features
-
Integrated PCM and Microscope
Features a built-in patch cord microscope and external P5000i probe for comprehensive end-face inspection and certification. -
Automated Pass/Fail Analysis
Provides instant results based on user-defined or industry standard criteria to reduce human error. -
Wide Wavelength Coverage
Supports optical power measurements across multiple calibrated wavelengths from 780nm to 1625nm. -
Intuitive Touch Interface
A 3.5-inch color touch screen facilitates easy navigation and efficient testing in the field. -
Data Export Capability
Supports internal storage and USB export to FiberChekPRO software for professional certification reporting. -
Comprehensive Kit Contents
Ships with all necessary adapters, inspection tips, and power accessories for immediate deployment.
Applications
- Fiber optic network installation and maintenance
- Data center fiber end-face inspection
- Optical power level verification
- Fiber certification for industry standards
Package Contents
- SmartClass OLP-82P main unit with integrated PCM
- FMAE adapter
- P5000i inspection microscope
- Inspection tips and adapters
- 1.25mm OPM adapter
- USB-A to Micro-USB cable
- FiberChekPRO software
- Power supply
- 8x AA batteries
- Carrying case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | FIT-82P01 |
| Display | 3.5" Color Touch Screen |
| Wavelength Range | 780nm to 1625nm |
| Connectivity | 2x USB 2.0, 1x Micro-USB |
Frequently Asked Questions
Does this kit include software?
Yes, it includes FiberChekPRO software for report generation and data management.
What is the primary function of the PCM?
The integrated Patch Cord Microscope allows for convenient inspection of connector end-faces on patch cords.
Can I store test results on the device?
Yes, the device supports internal storage of test results for later retrieval or export.
What wavelengths are calibrated?
The OPM supports multiple calibrated wavelengths spanning from 780nm to 1625nm.
Is this kit GSA compliant?
This specific part is noted as non-TAA compliant.
