Overview

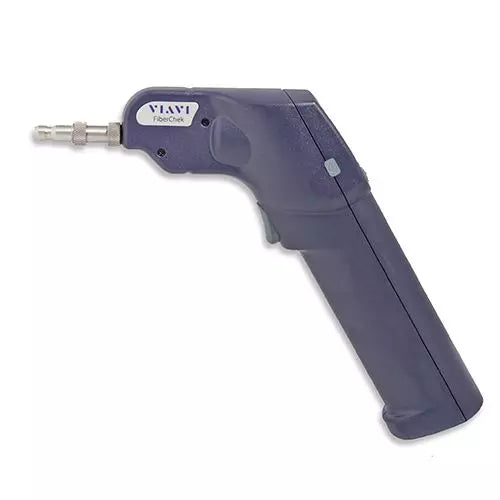

The VIAVI FiberChek Probe Microscope is an all-in-one inspection tool designed for fast and accurate fiber optic connectivity analysis. This portable solution allows technicians to perform critical end-face inspections on both patch cords and bulkhead connectors, ensuring network integrity in high-density environments, data centers, and field installations.
Equipped with an integrated touch screen, the probe provides live fiber viewing, automated centering, and auto-focus capabilities. The system supports automated pass/fail analysis, allowing for standardized testing results that can be managed and exported via Bluetooth, WiFi, or USB connectivity. The unit is designed for field use, facilitating inspections on towers, circuit boards, and ribbon connectors.
Key Features
-

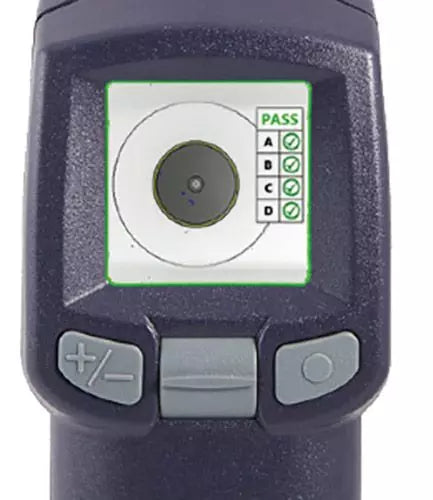

Integrated Touch Screen
Provides direct, on-probe control and live viewing of fiber end-faces without requiring an external display. -
Automated Analysis
Performs end-face testing based on user-defined pass/fail criteria to ensure consistent quality. -
Auto-Focus and Auto-Center
Simplifies the inspection process by automatically positioning and sharpening the image of the fiber core. -
Versatile Connectivity
Supports data export and management through Bluetooth, WiFi, and USB interfaces. -
Wide Compatibility
Compatible with all existing FBPT inspection tips and integrates seamlessly with other VIAVI testing equipment. -
Portable Design
Enables convenient use in challenging environments, including high-density patch panels and tower climbs.
Applications
- Data center high-density patch panel inspection
- Fiber optic connector testing on circuit boards
- Multi-fiber ribbon connector analysis
- Tower-top fiber inspection
- Patch cord and bulkhead end-face verification
Package Contents
- FiberChek Probe Microscope
- FBPT-U25M Universal 2.5 mm Inspection Tip
- Tip Case
- Carrying Case
Frequently Asked Questions
What is included in the FIT-FC-KIT1 kit?
The kit includes the FiberChek probe, a universal 2.5 mm inspection tip (FBPT-U25M), a tip case, and a protective carrying case.
Can the device perform automated analysis?
Yes, it supports automated fiber end-face analysis for both patch cords and bulkheads based on set pass/fail criteria.
How are results managed?
Test results can be stored, named, graded, and recalled directly on the probe, or exported via Bluetooth, WiFi, or USB.
Is the probe compatible with other tips?
Yes, it supports all existing VIAVI FBPT series inspection tips.
Does this probe work with other VIAVI test equipment?
Yes, it is designed for compatibility with other VIAVI fiber testing devices.
