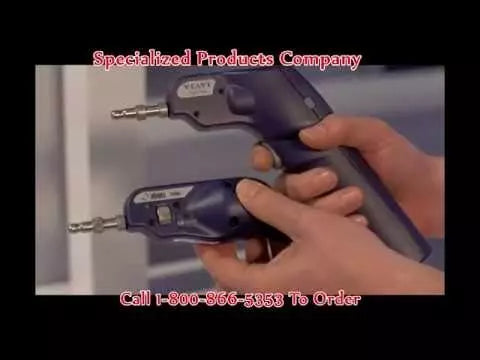

VIAVI FIT-FC-KIT2 FiberChek Probe Microscope Kit

Overview

The VIAVI FIT-FC-KIT2 FiberChek Probe Microscope Kit is an advanced, all-in-one inspection solution designed for network technicians and fiber installers. This kit enables precise, automated fiber end-face analysis for both patch cords and bulkhead connectors, ensuring high-quality connections in dense fiber environments. Its integrated touch screen provides live fiber viewing, while advanced software handles auto-centering and auto-focusing to simplify the inspection process.

Engineered for demanding field environments, the system allows for convenient inspection of fiber connectors on circuit boards, patch panels, and bulkhead adapters. With built-in memory for storing and grading results, the FiberChek probe helps professionals maintain consistent standards across their network infrastructure, with data transfer options including Bluetooth, WiFi, and USB for efficient reporting and documentation.

Key Features

• Integrated Touch Screen
  Features an on-board display for live fiber viewing and instant analysis results without requiring an external device.
• Automated Inspection
  Uses auto-center and auto-focus technologies to minimize human error and speed up the testing process.
• Pass/Fail Analysis
  Provides programmable criteria for automated grading of fiber end-face quality based on industry standards.
• Versatile Connectivity
  Offers data export via Bluetooth, WiFi, and USB for seamless integration with other test equipment and reporting software.
• Field Durability
  Designed for technicians working in high-density environments, including data centers and fiber-to-the-home installations.
• Wide Compatibility
  Compatible with a broad range of existing FBPT inspection tips to suit various connector types.

Applications

• Data center fiber patch panel inspection
• Fiber-to-the-home (FTTH) network certification
• High-density fiber network maintenance
• Circuit board and card-edge connector inspection
• Tower-top fiber troubleshooting

Package Contents

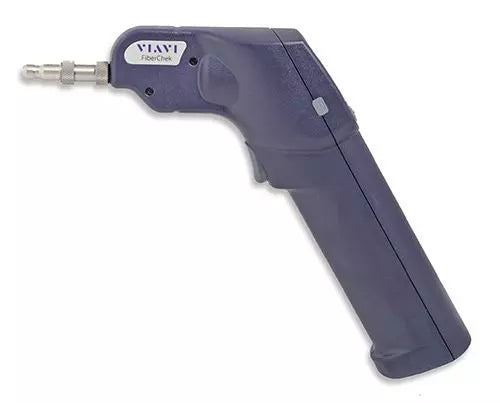

• FiberChek Probe Microscope
• SC Inspection Tip
• LC Inspection Tip
• Universal 2.5mm Inspection Tip
• Universal 1.25mm Inspection Tip
• Tip Case
• Carrying Case

Technical Specifications

Frequently Asked Questions

What is included in the kit?
The kit comes with the FiberChek probe, a specialized tip case, four specific inspection tips (SC, LC, 2.5mm universal, and 1.25mm universal), and a protective carrying case.

Does this kit work with other VIAVI devices?
Yes, the FiberChek probe is compatible with other VIAVI test equipment and supports existing FBPT inspection tips.

Can I perform pass/fail testing without a PC?
Yes, the probe features an integrated touch screen that allows for pass/fail analysis and data management directly on the device.

What types of connectors can it inspect?
The included tips allow for inspection of SC and LC connectors as well as universal 1.25mm and 2.5mm connector types.

How can I export my test results?
Test results can be managed on the probe itself or exported using Bluetooth, WiFi, or a USB connection.
