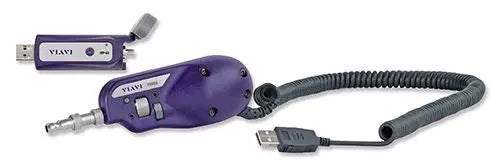

VIAVI FIT-SD103 P5000i Fiber Scope Digital Inspection Kit

Overview

The VIAVI FIT-SD103 Fiber Scope Digital Inspection and Test Kit is a professional-grade solution designed for the inspection and certification of fiber optic end-face quality. This comprehensive kit provides the tools necessary to perform automated analysis, ensuring network reliability by identifying contamination or damage on fiber connectors.

At the core of the kit is the FBP-P5000i digital analysis microscope, which facilitates fast, repeatable inspection results. It is paired with a miniature MP-60 USB 2.0 optical power meter, capable of taking accurate power measurements across a wide range of wavelengths. The system is designed to integrate seamlessly with existing VIAVI platforms, laptops, PCs, or mobile devices to streamline the certification workflow.

Designed for field environments, this kit includes a variety of inspection tips and adapters, providing versatility for testing different connector types. The system features automatic image centering and dual magnification, which reduces the time required for testing while increasing the accuracy of end-face quality assessments.

Key Features

• Digital Analysis Microscope
  Features the FBP-P5000i for automated inspection of fiber end-face quality.
• Optical Power Measurement
  Includes the MP-60 USB 2.0 power meter for precise power level readings.
• Automatic Image Centering
  Ensures the fiber connector is centered in the field of view for faster analysis.
• Pass/Fail Analysis
  Delivers repeatable, standardized results to certify fiber link performance.
• Broad Wavelength Coverage
  Supports testing at 850, 980, 1300, 1310, 1490, 1550, and 1625nm.
• Versatile Compatibility
  Compatible with PCs, laptops, mobile devices, and VIAVI test platforms.
• Comprehensive Kit Contents
  Supplied with essential inspection tips for SC, LC, and universal interfaces.

Applications

• Fiber optic network installation and maintenance
• Certification of single-mode and multimode fiber connectors
• Data center cabling inspection
• Troubleshooting fiber link performance degradation

Package Contents

• FBP-5000i digital probe microscope
• MP-60 USB optical power meter with 2.5mm interface
• FiberChekPRO software
• Inspection tips (SC, LC, universal 2.5mm and 1.25mm)
• 2 UPP adapters
• Carrying case

Technical Specifications

Frequently Asked Questions

Does this kit include software?
Yes, it comes with FiberChekPRO software for analysis and reporting.

What connector types are supported?
The kit includes tips for SC and LC connectors, plus universal 2.5mm and 1.25mm adapters.

Is this kit TAA compliant?
No, this model is non-TAA compliant.

What devices can I connect this to?
The scope can be used with VIAVI platforms, laptops, PCs, or compatible mobile devices.

Does it support both single-mode and multimode?
Yes, it is designed for both single-mode and multimode fiber inspection and power measurement.
