Overview

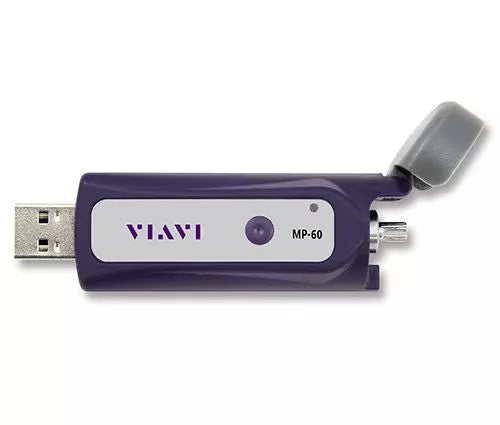

The VIAVI MP-60A is a miniature USB optical power meter designed for precise measurement of optical power levels in single-mode and multimode fiber networks. It connects directly to a PC or laptop via a USB 2.0 interface, allowing for seamless digital integration and real-time processing of test data.
This compact device is intended for field use in a variety of environments, including LAN, telecommunications, CATV, and DWDM networks. It enables technicians to perform automated data logging, archive test results, and generate custom logs using the integrated FiberChek2 software.
Key Features
-
USB 2.0 Connectivity
Connects directly to your computer for convenient power measurements and data processing. -
Broad Wavelength Coverage
Supports standard wavelength settings including 850, 980, 1300, 1310, 1490, 1550, and 1625nm. -
Wide Measurement Range
Features an optical power display range of -65 to +10 dBm. -
Automatic Wavelength Detection
Reduces setup time and minimizes human error during testing. -
Versatile Measurement Units
Displays readings in dB, mW, and dBm for flexible reporting. -
Complete Starter Kit
Includes the USB meter, FiberChek2 software, 1.25mm and 2.5mm interfaces, USB extender, and a carrying pouch.
Applications
- LAN fiber network testing
- Telecommunications infrastructure maintenance
- CATV system installation and troubleshooting
- DWDM network optical power verification
Package Contents
- MP-60A USB Optical Power Meter
- FiberChek2 software
- 2.5mm interface adapter
- 1.25mm interface adapter
- 30" USB extender cable
- Carrying pouch
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | MP-60A |
| Part Number | 345X616 |
| Display Range | -65 to +10 dBm |
| Wavelength Range | 780 to 1650nm |
| Calibrated Wavelengths | 850, 980, 1300, 1310, 1490, 1550, 1625nm |
| Interface | USB 2.0 |
Frequently Asked Questions
What software does the MP-60A use?
The device integrates with the VIAVI FiberChek2 software for data processing and logging.
Does this unit work with both single-mode and multimode fiber?
Yes, it is designed for all single-mode and multimode applications.
What is the primary power source?
The device is powered via the USB connection to your PC or laptop.
Are different connector sizes supported?
The kit includes 2.5mm and 1.25mm interfaces to accommodate standard fiber connectors.
Can I save my test results?
Yes, you can use the connected PC or laptop to create custom logs and archive test results.
