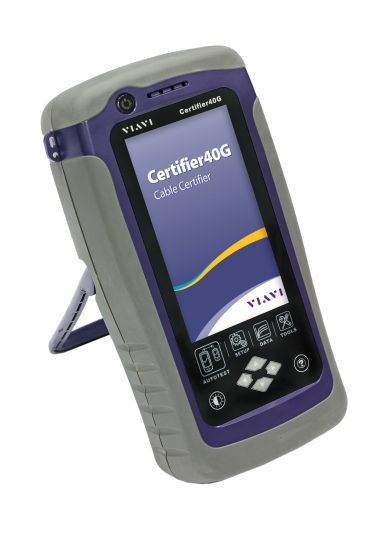

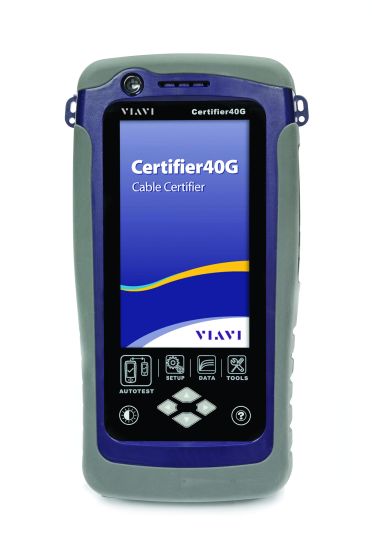

Viavi Certifier40G Cable Certifier (NGC-4500-CUQEF-NA)

SKU: NGC4500CUQEFNA

The Viavi Certifier40G is the industry’s most versatile and complete solution for certifying both copper and fiber cabling infrastructures. Designed to meet the demands of modern enterprise networks, it supports the latest standards and provides ultra-fast, standards-compliant test results with intuitive usability.

Download Product Spec Sheet:

• Viavi Certifier40G spec sheet (PDF)

Key Features

• Complete Certification: Tests both copper (Cat 5e to Cat 8) and fiber (MM & SM) cabling to TIA and ISO/IEC standards.

• Fast Testing:

  • Cat 6A/Class EA copper autotest in 12 seconds

  • Single-mode and multimode fiber autotest in 10 seconds

• Advanced Diagnostics: Built-in time-domain fault locator for return loss (RL) and near-end crosstalk (NEXT)

• Dual End Control: View, label, and save test results from either the local or remote unit

• Multilingual Support: Interface available in 17 languages including English, Chinese, German, Spanish, and more

Copper Certification

• Supports: TIA 568-C.2 Cat 5e/6/6A/8, ISO 11801 Class D/E/EA/F/FA

• Frequency range: 1–2500 MHz

• Measurement accuracy: ANSI/TIA-1152 Level 2G

• Max cable length: 500 m

• Key parameters: Wiremap, RL, NEXT, ACRF, Delay Skew, Loop Resistance

Fiber Certification (Certifier40G only)

• Singlemode: 1310/1550 nm, up to 10 km

• Multimode: 850/1300 nm with Encircled Flux compliance

• Dynamic range:

  • SM: 31 dB

  • MM: 12 dB

• Visual Fault Locator: 650 nm laser built-in

MPO Fiber Testing

• Tests 12 fibers simultaneously with polarity verification (A/B/C/Custom)

• Graphical and tabular loss per channel

• Supports MPO-MPO and MPO-SC/LC configurations

General Specifications

• Display: 6” industrial touch screen (both units)

• Interfaces: USB, Ethernet, talkset, probe port

• Battery: Removable Li-ion (>8 hours operation)

• Dimensions: 232 × 126 × 87 mm

• Weight: 1 kg per unit

• Rugged housing with 1.5 m drop resistance

• Operating temperature: 0°C to 40°C
