Overview

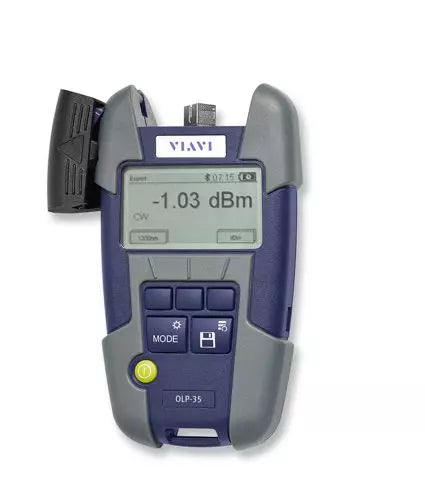

The VIAVI OLP-35V2 SmartPocket™ V2 is a compact, high-performance optical power meter designed for testing, installation, and maintenance of single-mode and multimode fiber networks. It provides accurate power measurements across a standard range of -65 to +10 dBm, making it ideal for a variety of telecommunication and enterprise network environments.
Engineered for efficiency, the unit features the "OptiChek" measurement mode, which eliminates manual setup requirements. With integrated Bluetooth Low Energy (BLE) connectivity, test data can be seamlessly uploaded to the VIAVI Mobile Tech App for reporting and analysis. The device includes a high-visibility graphical display and is built to withstand rigorous field use with over 45 hours of continuous battery operation.
Key Features
-
Broad Measurement Range
Supports measurements from -65 to +10 dBm, accommodating diverse network power levels. -
OptiChek Mode
Enables no-setup measurements, reducing configuration time for field technicians. -
Bluetooth Connectivity
Integrates with the VIAVI Mobile Tech App for automated test result documentation. -
Tone Detection
Detects 270 Hz, 330 Hz, 1 kHz, and 2 kHz signals for efficient fiber identification. -
Extended Battery Life
Delivers over 45 hours of continuous operation for reliable full-day field use. -
High-Visibility Interface
Equipped with a backlit graphical display for operation in low-light conditions. -
Flexible Power Options
Compatible with alkaline AA batteries, NiMH rechargeable batteries, AC adapters, and USB power. -
Data Management
Internal storage capable of saving over 1000 test results for comprehensive auditing.
Applications
- Telecommunication network installation
- Multimode fiber network testing
- Single-mode fiber network testing
- Fiber maintenance and troubleshooting
Package Contents
- OLP-35V2 SmartPocket Power Meter
- 2.5mm Universal Push-Pull (UPP) Adapter
- 2 x AA Alkaline Batteries
- User Manual
- Belt Bag
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | OLP-35V2 |
| Part Number | 345X652 |
| Power Range | -65 to +10 dBm |
| Tone Detection | 270 Hz, 330 Hz, 1 kHz, 2 kHz |
| Data Storage | >1000 test results |
| Connectivity | Bluetooth Low Energy (BLE) |
| Battery Operation | >45 hours |
Frequently Asked Questions
What is the power range of this device?
The OLP-35V2 is designed for a power range of -65 to +10 dBm.
Does this unit work with light sources?
Yes, it is compatible with SmartPocket V2 light sources.
Can I export my test results?
Yes, you can use the VIAVI Mobile Tech App to upload results via Bluetooth.
What types of batteries does it use?
It supports 2x AA alkaline batteries or 2x NiMH AA rechargeable batteries.
What kind of adapter is included?
The unit comes with a 2.5mm universal push-pull (UPP) adapter.
