Overview

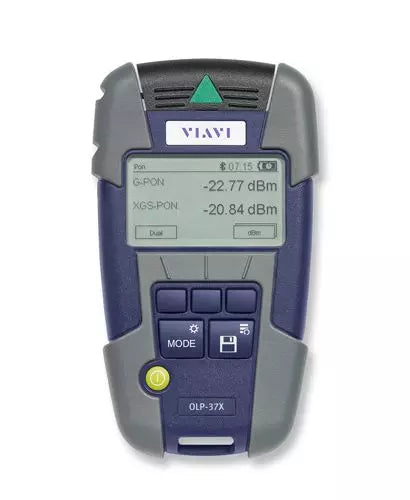

The VIAVI OLP-37XV2 SmartPocket™ V2 G/XGS-PON Wavelength Selective Power Meter is a specialized test instrument engineered for the simultaneous measurement of downstream power levels in PON networks. It supports both G/E-PON and XGS-PON/10G-EPON infrastructures, enabling technicians to efficiently verify network performance and detect signal degradation.
Designed for field operations, this meter features a single test port connection for simplified dual-wavelength measurement. The device is built for productivity with an instant-on capability, a high-visibility backlit display, and a robust battery life exceeding 45 hours. Integrated Bluetooth connectivity allows for seamless data transfer via the VIAVI Mobile Tech App, facilitating quick test result uploads and report generation.
Key Features
-
Selective PON Measurement
Simultaneously measures downstream power for G/E-PON and XGS-PON/10G-EPON networks to ensure service quality. -
Single Port Design
Features one test port connection for simultaneous dual-wavelength measurement, reducing testing time and connector wear. -
Bluetooth Connectivity
Connects to the VIAVI Mobile Tech App for automated test result upload and improved field data management. -
Extended Battery Life
Provides over 45 hours of continuous operation in the field to minimize downtime for recharging. -
High-Visibility Interface
Includes a bright, graphical display with backlight for clear readings in various lighting conditions. -
Tone Detection
Supports multiple frequencies (270Hz, 330Hz, 1kHz, 2kHz) for reliable fiber identification. -
Flexible Power Options
Operates using alkaline or NiMH AA rechargeable batteries, AC adapter, or USB power sources.
Applications
- G/E-PON network testing and troubleshooting
- XGS-PON and 10G-EPON deployment and verification
- Downstream power level measurement and loss testing
- Fiber optic cable maintenance and field verification
Package Contents
- VIAVI OLP-37XV2 Power Meter
- 2.5mm Universal Adapter
- 2 x AA Batteries
- User Manual
- Belt Bag
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | OLP-37XV2 |
| Power Range | -45 to +13 dBm |
| Data Storage | >1000 test results |
| Connectivity | Bluetooth Low Energy |
| Tone Detection | 270Hz, 330Hz, 1kHz, 2kHz |
| Battery Life | >45 hours |
| Power Options | 2x AA Alkaline, 2x AA NiMH, AC adapter, USB |
Frequently Asked Questions
What types of PON networks does this meter support?
The OLP-37XV2 is designed for G/E-PON and XGS-PON/10G-EPON networks.
Can the test results be stored locally on the device?
Yes, the unit features internal storage for over 1000 test results.
How do I upload test results?
Results can be uploaded via the VIAVI Mobile Tech App using the meter's Bluetooth connectivity.
What is the power range of this device?
The operating power range is -45 to +13 dBm.
Does it support external power?
Yes, it supports USB and AC power options in addition to AA battery power.
