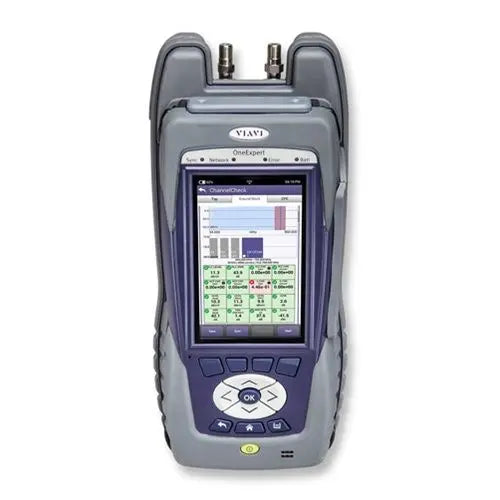

The VIAVI ONX-630D31-4220-1012-NTX OneExpert CATV Signal Analysis Meter is a professional-grade testing instrument designed for technicians and engineers to troubleshoot and verify CATV and home networks. It provides advanced capabilities for managing QAM carriers, testing WiFi networks, and facilitating the installation of PON and RFoG systems.
Equipped with an automatically switching diplexer (42/204 MHz), this meter supports smooth transitions into extended return bands. It features comprehensive diagnostic tools, including DOCSIS, Multi-Gigabit Ethernet, and TrueSpeed testing. The intuitive multi-touch interface allows for rapid identification of cable lengths, signal faults, splitters, filters, and amplifiers, ensuring efficient network maintenance in demanding field environments.
Key Features
-
Multi-Touch Interface
A user-friendly touchscreen dashboard provides quick access to system status and diagnostic summaries. -

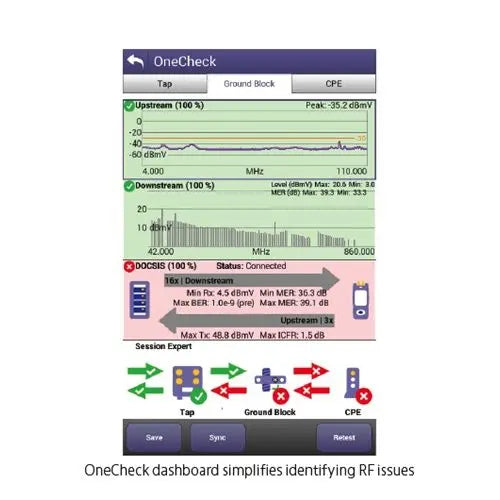

OneCheck Automation
Automated test routines streamline the verification process for QAM carriers and home network health. -
Switchable Diplexer
Integrated 42/204 MHz diplexer facilitates flexible transition to modern extended return bands. -
Comprehensive Connectivity
Supports DOCSIS, WiFi, and Multi-Gigabit Ethernet testing for versatile network verification. -
Coax Network Mapping
Provides detailed graphical representations of cable architecture, including faults and passive components. -
Ingress Scan
Simultaneous analysis of downstream signals and ingress levels to identify interference sources. -
Dashboard Reporting
Centralized view of summary data from DOCSIS and session experts for rapid performance assessment.
Applications
- CATV Home Network Troubleshooting
- QAM Carrier Verification
- WiFi Network Optimization
- PON and RFoG Installation
- Extended Return Band Testing
Package Contents
- ONX-630D31-4220-1012-NTX Meter
- Protective Case
- Hand Strap
- Detachable Shoulder Strap
- AC Power Supply
- Quick Start Guide
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | VIAVI |
| Model | ONX630D314220NTX |
| Part Number | 345X671 |
| Diplexer Settings | 42/204 MHz (Automatic) |
Frequently Asked Questions
What is the purpose of the 42/204 MHz diplexer?
The switchable diplexer allows the device to adapt to different return band frequencies, supporting the upgrade to extended return band infrastructure.
Does this meter support WiFi testing?
Yes, the unit is equipped with integrated WiFi testing capabilities to verify wireless network performance.
What is included in the package?
The unit ships with a protective carrying case, hand and shoulder straps, an AC power adapter, and a quick start guide.
Is this device compliant with TAA requirements?
No, this specific model is listed as Non-TAA Compliant.
Can I test for cable faults with this device?
Yes, the meter provides a mapped overview of the coax network that can identify the location of cable lengths, splitters, filters, and amplifiers.
