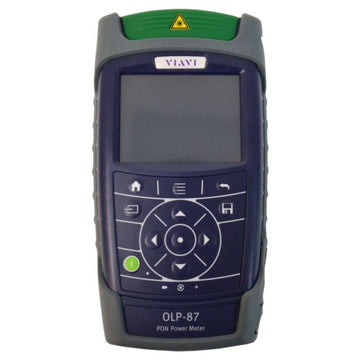

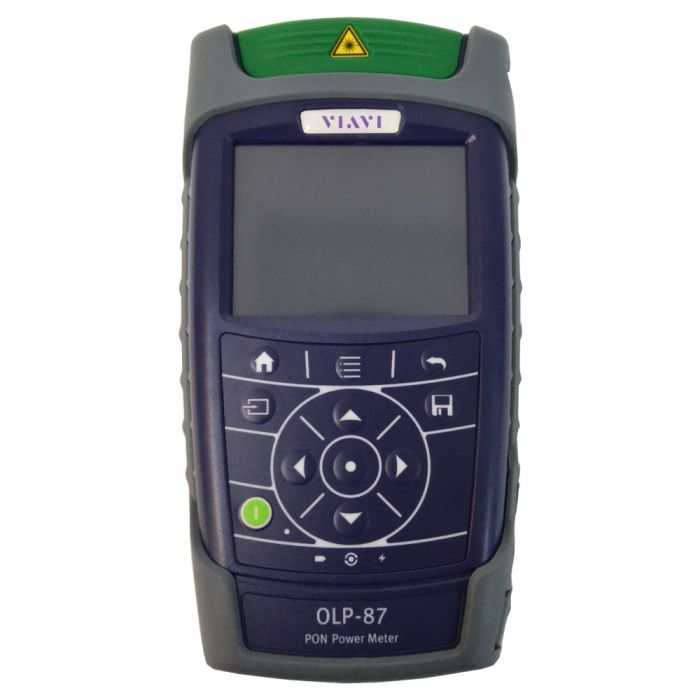

The Viavi SmartClass Fiber PON Power Meter (model 2305/66) is a high-performance, handheld test instrument engineered for the qualification, activation, and troubleshooting of modern FTTx and PON networks. It provides specialized support for B-PON, E-PON, G-PON, XG-PON, and 10GE-PON architectures, offering comprehensive power measurement capabilities in a robust, field-ready design.
Equipped with wavelength-selective measurement technology, this meter accurately characterizes upstream and downstream signals across 1270, 1310, 1490, 1550, and 1578 nm wavelengths. It features a high-contrast 3.5" TFT color touchscreen, integrated pass/fail analysis, and seamless data management, ensuring that technicians can efficiently capture, store, and report measurement results during field operations.
Downloads
Key Features
-
Wavelength-Selective PON Testing
Simultaneous monitoring of multiple PON wavelengths with high isolation, allowing for accurate power measurements in active FTTx networks. -
Integrated Pass/Fail Analysis
Configurable threshold sets with automated analysis, enabling rapid and consistent decision-making in the field. -
Burst Mode Measurement
Supports accurate upstream burst power analysis at 1270 nm and 1310 nm, critical for troubleshooting PON network performance. -
High-Resolution Touchscreen
Includes a 3.5" TFT color touchscreen interface that simplifies navigation, configuration, and result viewing. -
Comprehensive Data Management
Stores up to 10,000 measurement results with USB export capabilities to PC software for advanced reporting. -
Versatile Power Options
Operates via AA batteries, a rechargeable Li-Ion battery pack, or an external AC/DC power supply for maximum flexibility. -
Robust Field Design
Engineered for durability in outside plant environments, ensuring reliable performance during daily network maintenance tasks. -
QuickCapture™ Functionality
Allows for instant triggering of pass/fail tests or freezing live measurement screens for immediate verification.
Applications
- Activation and troubleshooting of G-PON, XG-PON, and 10GE-PON networks
- Access network qualification and maintenance
- Verification of upstream and downstream PON signal power levels
- Fiber inspection (when paired with optional digital probe)
- Central office and laboratory optical system testing
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Viavi Solutions Inc. |
| Part Number | BN 2305/66 |
| Supported Wavelengths | 1270, 1310, 1490, 1550, 1578 nm |
| Connector Type | SC-APC fixed adapter |
| Display | 3.5" TFT color touchscreen |
| Weight | 750 g |
| Data Memory | 10,000 results |
| Operating Temperature | -5 °C to +45 °C |
| Storage Temperature | -25 °C to +55 °C |
| Interfaces | 2x USB Type A, 1x USB Micro-B, Ethernet (RJ-45) |
Frequently Asked Questions
Can this meter test burst mode signals?
Yes, the unit is specifically calibrated for burst mode measurements at 1270 nm and 1310 nm, which is necessary for upstream path verification in PON networks.
Does the unit require specific cleaning?
Yes, ensure the SC-APC adapter is clean before each connection to maintain measurement accuracy and prevent damage to the optics.
Can I use this for non-PON networks?
While optimized for PON/FTTx, it can function as a standard power meter if equipped with the appropriate broadband power meter software option.
What power supplies are supported?
It supports AA dry cells, rechargeable NiMH batteries, the RBP2 Li-Ion battery pack, or the PS4 Universal AC/DC power supply.
How is data exported?
Measurement results are saved to internal memory and can be exported via the USB or Ethernet interfaces to Viavi reporting software.
