Overview

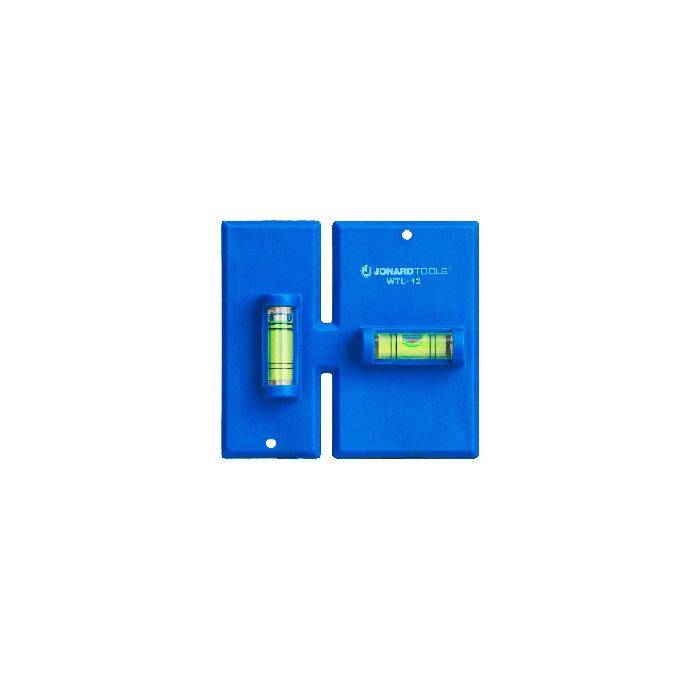

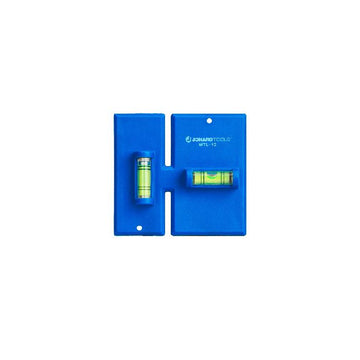

The Wall Box Template & Leveler is an essential tool designed to simplify the installation of single and double gang non-metallic old work boxes. By integrating leveling functionality directly into the template, it ensures precise, level placement for every box installation, reducing rework and improving professional appearance.
The template is constructed with durable materials and features wide protective rubber strips to keep it securely in place while preventing damage to finished wall surfaces. It also includes dedicated screw holes to allow for hands-free operation during the marking and cutting process.
Key Features
-
Integrated Leveling
Built-in levels allow for perfectly horizontal or vertical positioning of wall boxes. -
Protective Design
Wide rubber strips provide a non-slip grip and prevent scuffing or scratching of walls. -
Hands-Free Convenience
Integrated screw holes allow the template to be secured to the wall during use. -
Universal Compatibility
Works with various non-metallic box styles including single and double gang configurations. -
Precision Cutouts
Provides exact dimensions for standard gang box installations. -
Durable Construction
Built to withstand frequent use in rugged job site environments.
Applications
- Installation of non-metallic old work electrical boxes
- Low voltage cable mounting and plate installation
- Residential and commercial retrofitting
- Telecommunications and data wall outlet installation
Technical Specifications
| Specification | Value |
|---|---|
| 1-Gang Cutout Dimensions | 2 1/4" Wide x 3 5/8" High |
| 2-Gang Cutout Dimensions | 4" Wide x 3 5/8" High |
Frequently Asked Questions
Is this template compatible with all box brands?
It is compatible with many brands, including Carlon and Arlington Industries, for both single and double gang non-metallic old work boxes.
Does the template protect the wall surface?
Yes, it features wide protective rubber strips that prevent scuffing or scratching during the installation process.
Can I use the template hands-free?
Yes, the template includes screw holes that allow you to secure it to the wall while you mark or cut.
What is the primary purpose of this tool?
It is designed to ensure that electrical and low-voltage wall boxes are perfectly level during installation.
What sizes does the template accommodate?
It features specific cutouts for both 1-gang and 2-gang non-metallic old work boxes.
