Overview

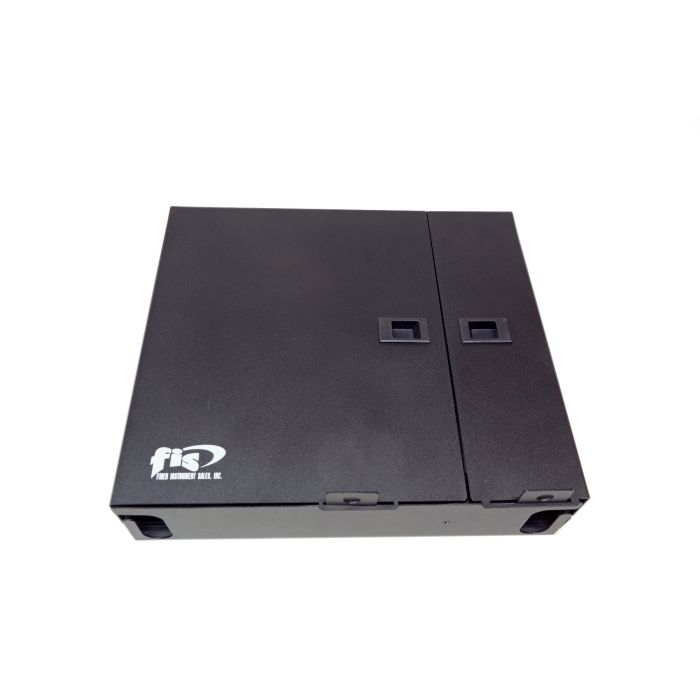

The 2 Panel Deluxe Wall Mount Enclosure provides a robust and efficient solution for fiber optic connectivity and management. Designed for indoor environments, this enclosure is engineered to reduce installation time by offering a preloaded configuration that includes adapter plates, pigtails, and splice trays. The unit is constructed from heavy-duty 14-gauge aluminum, ensuring durability for long-term network infrastructure support.

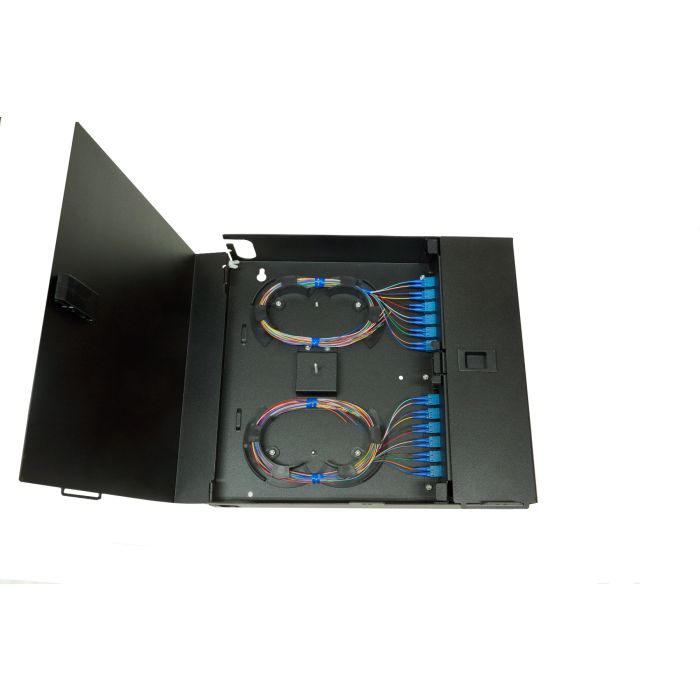

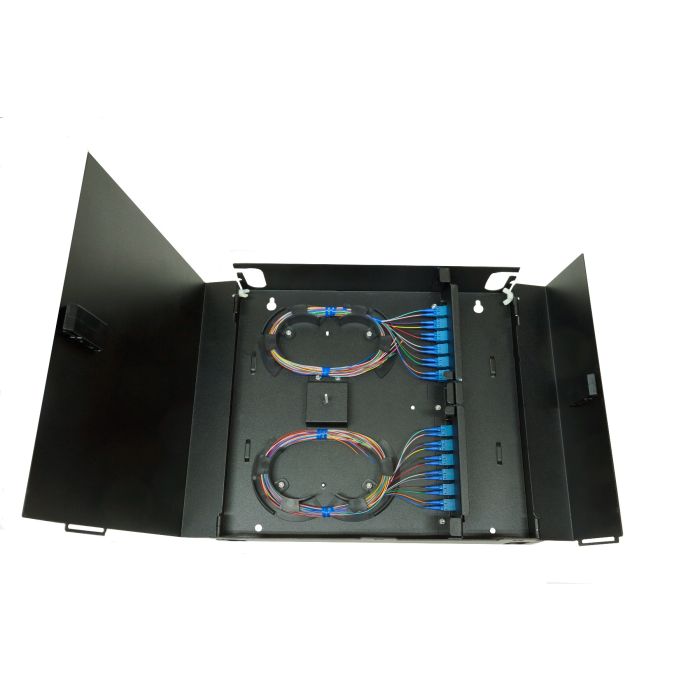

This enclosure features an optimized internal layout with a large splicing bay, integrated cable management brackets, and dedicated cable tie-downs to maintain proper bend radius and organization. The platform is designed for easy access, featuring removable dual-hinged doors equipped with snap-latch security and provisions for padlocks to protect sensitive fiber terminations.
Key Features
-
Preloaded Configuration
Comes fully equipped with adapter plates, splice trays, and pigtails to minimize on-site installation and configuration time. -
14-Gauge Aluminum Construction
Provides a rugged, lightweight housing that ensures physical protection for internal fiber components. -
Integrated Cable Management
Features built-in management brackets and tie-downs to ensure organized routing and proper fiber bend radius. -
Flexible Cable Entry
Supports top and bottom cable entry via S-style ports, allowing for versatile installation options in various wall locations. -
Dual-Hinged Access
Removable doors allow for clear, unobstructed access to the splicing bay and patch area for maintenance or future upgrades. -
Security Features
Equipped with snap-latches and padlock eyelets to prevent unauthorized access to critical network connections.
Applications
- Telecommunications distribution
- Enterprise LAN/WAN networks
- Data center cross-connects
- FTTX installations
- Wall-mounted fiber distribution points
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F1DW2XLCUPC24SP |
| Enclosure Type | Wall Mount |
| Capacity | 2 LGX Adapter Plates |
| Splice Tray Capacity | Holds (2) 12 Fiber Splice Trays |
| Material | 14 Gauge Aluminum |
| Finish | Black |
| Access | Removable Dual Hinged Doors |
Frequently Asked Questions
Does this unit come ready for installation?
Yes, this enclosure is preloaded with adapter plates, splice trays, and pigtails, allowing for a plug-and-play installation.
How many fibers can be spliced in this unit?
The enclosure is designed to hold two 12-fiber splice trays, supporting up to 24 fibers.
Can the enclosure be locked?
Yes, it features snap-latch security and includes padlock eyelets for added protection.
Where can cable enter the enclosure?
Cable can be routed through either the top or the bottom of the enclosure using S-style entry ports.
What is the enclosure made of?
It is constructed from rugged 14-gauge aluminum for durability and protection.
