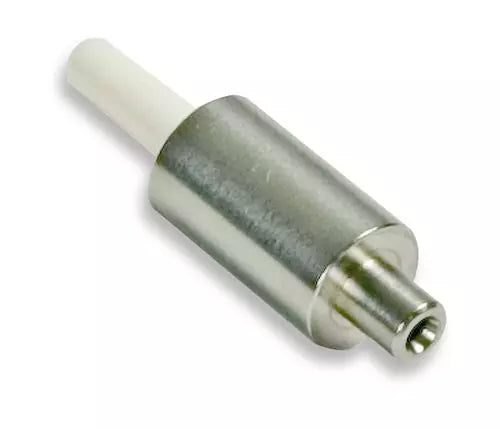

Wilcom 30032232-01 1.25mm Universal Adapter for VFL, LC Adapter

Overview

The Wilcom 30032232-01 Universal Adapter is a specialized precision accessory designed for use with the Wilcom F6230A pen-style visual fault locator. Its primary purpose is to convert the standard 2.5mm interface of the fault locator to a 1.25mm connector interface, enabling compatibility with LC-style fiber optic connectors.

This adapter facilitates efficient fiber continuity testing and fault location in high-density environments where LC connectivity is standard. Constructed for durability and precise alignment, this component ensures consistent light transmission from the visual fault locator to the fiber under test.

Key Features

• Connector Conversion
  Specifically adapts 2.5mm visual fault locator outputs to 1.25mm LC interfaces.
• Compatibility
  Engineered for seamless integration with the Wilcom F6230A series visual fault locators.
• Precision Alignment
  Ensures stable optical contact between the VFL laser source and the target LC ferrule.
• Compact Design
  Lightweight form factor suitable for field use and storage within standard tool kits.
• Easy Installation
  Quickly attaches to the existing VFL output port without requiring additional tools.
• Fiber Maintenance
  Allows technicians to extend the utility of standard VFL equipment to small form factor connectors.

Applications

• Fiber optic cable fault verification
• Visual continuity testing for LC-based fiber networks
• High-density data center cable inspection
• Fiber-to-the-Home (FTTH) installation and troubleshooting

Technical Specifications

Frequently Asked Questions

What is the purpose of this adapter?
It allows you to use a standard 2.5mm output Visual Fault Locator with smaller 1.25mm LC fiber optic connectors.

Which devices is this compatible with?
This adapter is designed for use with the Wilcom F6230A pen-style Visual Fault Locator.

Can this be used for other connector types?
This specific adapter is optimized for the transition from 2.5mm to 1.25mm LC style connectors.

Is the adapter easy to install?
Yes, it is designed to press-fit or screw onto the existing VFL output tip, depending on your device configuration.

Does this affect the light output of the VFL?
The adapter is designed to maintain optical alignment, ensuring the laser light reaches the fiber core effectively.
