Overview

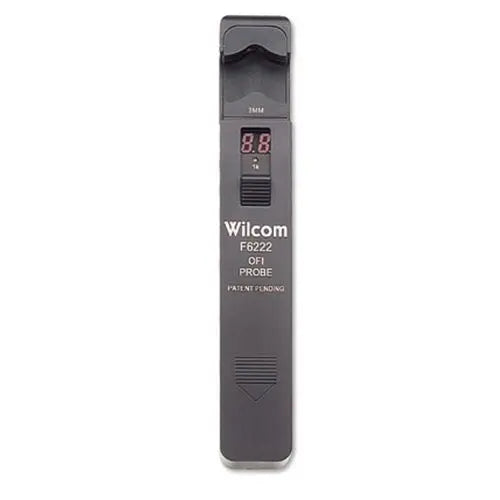

The Wilcom F6222 Advanced Optical Fiber Identifier is a professional-grade installation and maintenance tool designed to identify active fibers. It detects signals transmitted through single-mode or multimode fiber without requiring the service to be interrupted, making it essential for field technicians and network operators performing maintenance or troubleshooting.
The device is capable of detecting continuous wave (CW), live optical traffic, and low-frequency modulated tones at 270 Hz, 1000 Hz, and 2000 Hz. It also features a two-digit, seven-segment LED display that provides a relative core power measurement, which is useful for verifying power loss at splices or connectors during fiber verification processes.
Key Features
-
Non-Intrusive Detection
Identifies signals without disrupting active traffic, ensuring network uptime. -
Multi-Frequency Support
Detects 270 Hz, 1000 Hz, and 2000 Hz tones for accurate fiber identification. -
Core Power Measurement
Displays relative power on a two-digit LED, facilitating splice and connector loss verification. -
Versatile Compatibility
Includes three interchangeable adapter heads to support jacketed, coated, or ribbon fibers. -
Portable Design
Lightweight construction at only 7.5 ounces, ideal for field technicians on the move. -
Included Accessories
Comes with a fiber optic probe and leather carrying case for protection and ease of use.
Applications
- Fiber optic installation verification
- Live network traffic identification
- Splice and connector loss assessment
- Troubleshooting and maintenance of single-mode and multimode networks

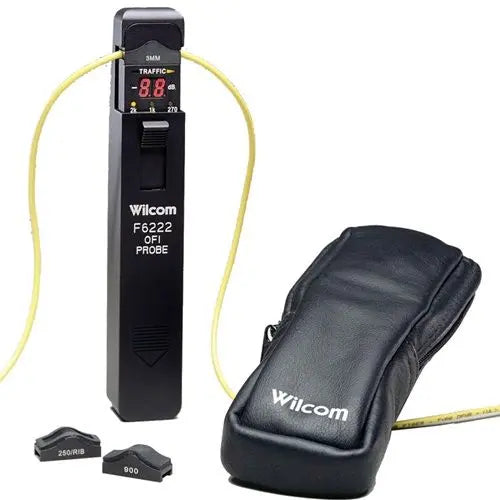

Package Contents
- F6222 Advanced Optical Fiber Identifier
- Fiber optic probe
- Leather carrying case
- Three interchangeable adapter heads (for jacketed, coated, and ribbon fiber)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Wilcom |
| Model | F6222 |
| Signal Detection | Continuous wave, live traffic, modulated tones (270, 1000, 2000 Hz) |
| Fiber Compatibility | Multimode, Single mode |
| Display Type | Two-digit, seven-segment LED |
| Dimensions | 7.5" x 1.25" x 1.1" |
| Weight | 7.5 oz |
| Warranty | 1 Year |
Frequently Asked Questions
What types of fiber is this identifier compatible with?
The F6222 supports both single-mode and multimode optical fibers.
Can I use this tool on active fibers without causing an outage?
Yes, the device is designed to identify signals on live traffic without disrupting service.
Does it measure the actual power level in dBm?
The device displays relative core power to help you measure loss at a splice or connector.
Which tone frequencies can be detected?
It can detect low-frequency modulated tones at 270 Hz, 1000 Hz, and 2000 Hz.
What adapter heads are included?
It comes with three interchangeable adapter heads specifically for jacketed, coated, and ribbon fibers.
