Overview

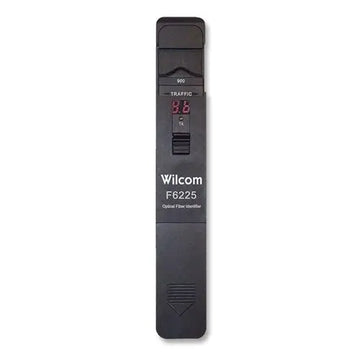

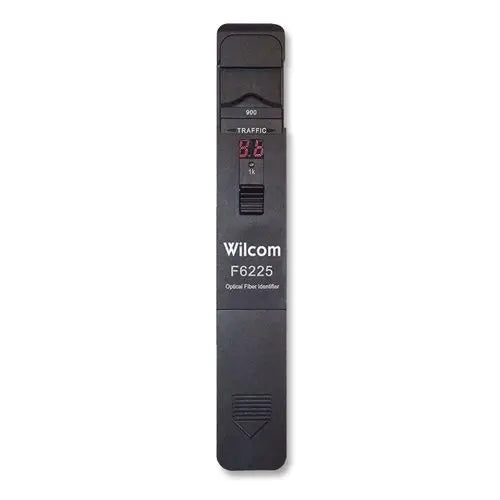

The Wilcom F6225 Extended Range Optical Fiber Identifier is a handheld field tool designed for the telecommunications and CATV industries. It is used to identify optical signal presence, traffic direction, and relative core power levels in single mode fiber networks.
By utilizing non-destructive macro-bend detection, the F6225 enables fiber identification without the need to disconnect the fiber or open a splice point, preventing network service interruption or physical damage to the cable. The unit is optimized for field use with an integrated ambient light reduction shield to ensure accuracy in varying light conditions.
Key Features
-
Non-Destructive Testing
Uses macro-bend technology to identify fiber without service interruption. -
Integrated Display
Features a digital display for real-time monitoring of relative core power readings. -
Ambient Light Shield
Includes a physical shield to minimize interference during field testing. -
Tone Detection
Detects and identifies 270 Hz, 1000 Hz, and 2000 Hz test tones with distinct audible alerts. -
Traffic Detection
Provides clear LED indicators for traffic presence and signal direction. -
Broad Spectral Response
Supports operation across a range of 850 nm to 1700 nm. -
High Sensitivity
Detector sensitivity reaches -45 dBm for identifying weak signals. -
Wide Dynamic Range
Monitors relative core power between +24 dBm and -58 dBm.
Applications
- Telecommunications network maintenance
- CATV infrastructure identification
- Fiber optic splice verification
- Live traffic monitoring
Package Contents
- Wilcom F6225 Main Unit
- Carrying Pouch
- Three interchangeable field adapter heads
- Adapter for 900 µm buffered fiber
- Adapter for ribbon or 250 µm coated fiber
- Adapter for 3 mm jacketed fiber
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Wilcom |
| Model | F6225 |
| Spectral Response | 850 nm – 1700 nm |
| Detector Sensitivity | -45 dBm |
| Power Reading Range | +24 dBm to -58 dBm |
| Insertion Loss | < 0.16 dB (typical) |
| Tone Frequencies | 270 Hz, 1000 Hz, 2000 Hz |
Frequently Asked Questions
Does this unit interrupt service?
No, it utilizes non-destructive macro-bending which does not require opening the fiber.
Can it detect traffic direction?
Yes, the unit includes LED indicators to show both traffic presence and direction.
What types of fiber can it accommodate?
It includes adapters for 900 µm buffered, 250 µm coated/ribbon, and 3 mm jacketed fibers.
Can I use this with external light sources?
Yes, it is compatible with standard stabilized laser or LED fiber optic sources.
What is the typical insertion loss?
The typical loss introduced by the device is less than 0.16 dB.
