Overview

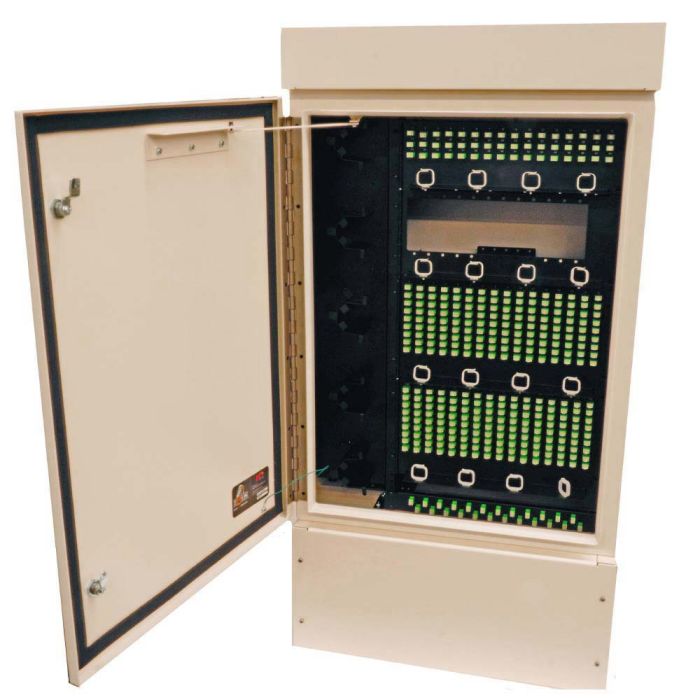

The Zeus Fiber Management Center is a pad-mounted, environmentally protected enclosure engineered for Fiber to the Home (FTTH) applications. It serves as a primary distribution point, managing the transition of light from feeder cables to individual home drops.
The cabinet features an environmentally sealed design with windstop security latches and liquid-tight cable entry ports to ensure long-term reliability in outdoor environments. Inside, the unit supports efficient fiber routing and organization, including the capacity to house up to 12 LGX-style splitter modules.
Key Features
-
Environmentally Sealed Enclosure
Features a front door with pad-lockable security latches and windstop to protect sensitive internal components from environmental exposure. -
Integrated Cable Management
Includes internal brackets to ensure organized, radius-protected fiber routing. -
Liquid-Tight Cable Entry
Four ports equipped with liquid-tight sealing grommets prevent moisture ingress and support strain relief. -

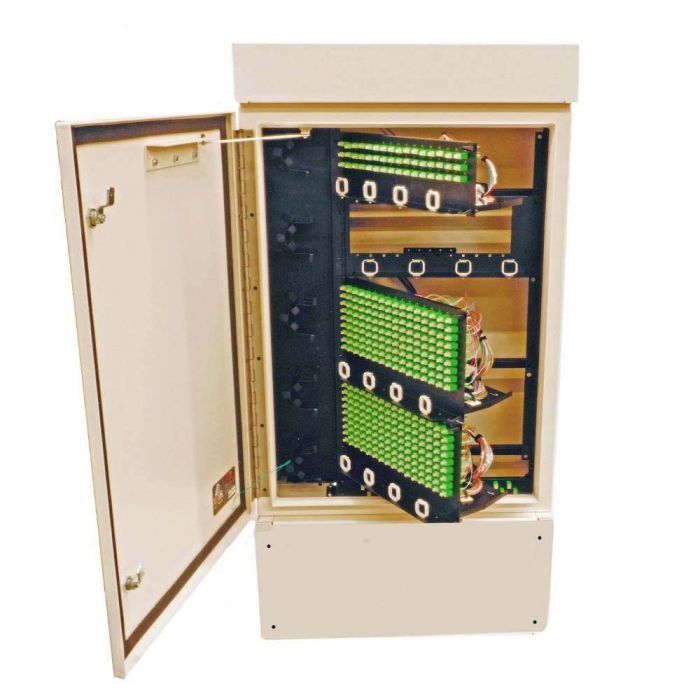

Swing-Out Module Panels
Internal modules are built with swing-out panels for simplified rear access during maintenance and provisioning. -
Pad Mount Design
Features a dedicated skirt with removable front and rear panels to facilitate easy installation on concrete pads. -
LGX Compatibility
The chassis is designed to accommodate up to 12 LGX-footprint splitter modules, offering flexible configuration options.
Applications
- Fiber to the Home (FTTH) distribution
- Outdoor residential fiber network access points
- FTTX network deployments
Technical Specifications
| Specification | Value |
|---|---|
| Input Feeder | 24 Fiber SC/APC |
| Feeder Cable Length | 100 feet |
| Distribution Capacity | 144 SC/APC |
| Splitter Capacity | 12 LGX Modules |
| Mounting Type | Pad Mount with Skirt |
| Environmental Protection | Sealed Front Door, Liquid-Tight Entry |
Frequently Asked Questions
What type of splitter modules are compatible with this enclosure?
The cabinet is designed to accommodate 12 standard LGX-footprint splitter modules.
Is this enclosure suitable for outdoor installation?
Yes, it is designed for outdoor use and features an environmentally sealed door and liquid-tight cable entry ports.
Does the unit come with pre-installed cables?
Yes, it includes a 24-fiber input feeder cable at a length of 100 feet.
How is access managed for internal repairs?
The internal panels are built to swing out, providing clear rear access for technicians.
What security features are provided?
The unit includes padlock-style security latches and a windstop mechanism on the front door.
