Overview

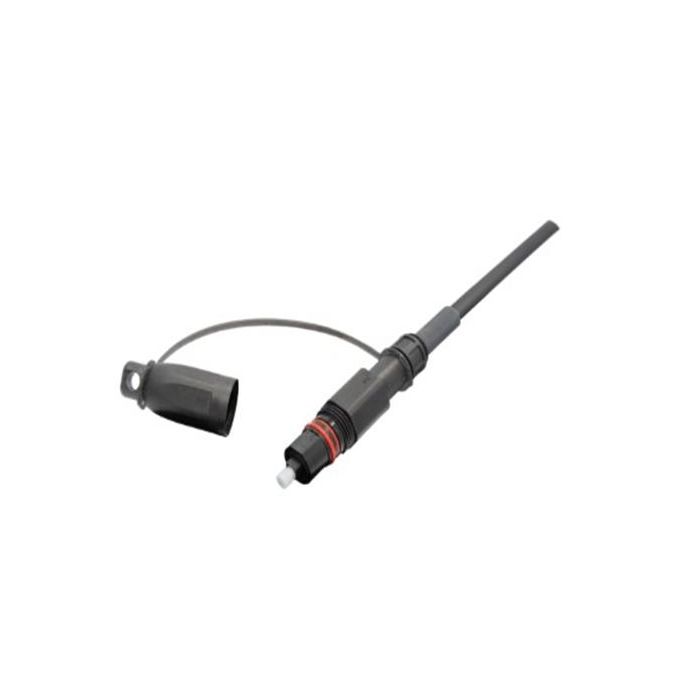

The Zeus Flat Drop Cable Assembly is a factory-terminated fiber optic solution designed for efficient FTTx installations. By providing a pre-terminated interface, this assembly simplifies the connection process, requiring only two fusion splices and a direct connection to the Network Interface Device (NID).
Engineered for robust performance, this assembly utilizes bend-insensitive singlemode fiber (Corning SMF-28 Ultra) to ensure signal integrity even in challenging installation conditions. The non-toneable construction and integrated ZTAP connector make it an ideal choice for streamlined fiber-to-the-home deployments.
Key Features
-
Bend-Insensitive Fiber
Features Corning SMF-28 Ultra fiber, which reduces signal loss in tight-bend environments. -
Factory Terminated
Ensures consistent optical performance and reduces field installation time. -
ZTAP Connector
Includes a standardized H-compatible connector for fast, secure termination at the NID. -
Pre-measured Length
150-foot length is pre-configured for standard drop applications, eliminating onsite measuring errors. -
Singlemode Compatibility
Optimized for long-reach, high-bandwidth singlemode network architectures. -
Streamlined Installation
Requires only two fusion splices, minimizing labor requirements per drop.
Applications
- FTTx installations
- Network Interface Device (NID) connections
- Last-mile fiber drops
- Broadband service provisioning
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Zeus |
| Part Number | ZDCN-1-HIP-P-150 |
| Fiber Type | Singlemode (Corning SMF-28 Ultra) |
| Cable Type | Flat Drop (Non-Toneable) |
| Connector Type | ZTAP (H-Compatible) |
| Cable Length | 150 feet |
Frequently Asked Questions
What is a ZTAP connector?
The ZTAP connector is a hardened, H-compatible fiber optic connector designed for outdoor, quick-connect applications in FTTx environments.
Is the cable toneable?
No, this specific model (ZDCN-1-HIP-P-150) is a non-toneable cable assembly.
What kind of fiber is used?
This assembly uses Corning SMF-28 Ultra bend-insensitive singlemode fiber.
Can this be used for direct burial?
This is designed as a drop cable for FTTx; please consult the technical specification sheet for specific environmental ratings and installation requirements.
How many splices are needed?
The assembly is intended for use with two fusion splices to complete the installation path.
