Overview

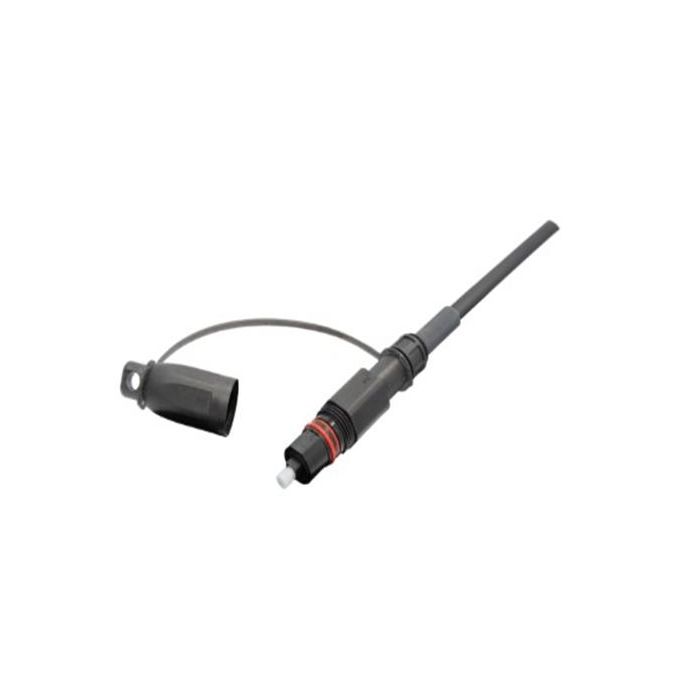

The Zeus Flat Drop Cable Assembly is a high-performance, factory-terminated solution engineered for seamless FTTx installations. Designed for efficiency and reliability in outdoor deployments, this cable assembly features a toneable design that allows for easy location of the line after burial.
Equipped with Corning SMF-28 Ultra fiber, this assembly provides exceptional bend-insensitive performance, making it ideal for tight routing and challenging environments. Each unit comes pre-terminated with a 1 ZTAP connector, providing compatibility with industry-standard H-style interfaces and facilitating quick, direct connections to Network Interface Devices (NIDs).
Key Features
-
Pre-Terminated Design
Factory-installed ZTAP connectors reduce onsite assembly time and ensure consistent optical performance. -
Bend-Insensitive Fiber
Utilizes Corning SMF-28 Ultra fiber to maintain signal integrity during tight-radius bends and challenging installations. -
Toneable Construction
Integrated toning wire allows technicians to easily locate buried cable paths for future maintenance. -
H-Compatible Connector
The ZTAP connector is designed to be compatible with standard H-style hardened connector interfaces. -
Optimized for FTTx
Specifically developed for drop cable applications, connecting external plant to the customer premises. -
Plug-and-Play Integration
Simplifies the connection process at the NID, requiring only two fusion splices to complete the drop.
Applications
- Fiber-to-the-Home (FTTH) networks
- Outdoor drop cable installations
- Network interface device (NID) connectivity
- Underground/buried fiber deployments
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Zeus |
| Part Number | ZDCT-1-HIP-P-150 |
| Cable Type | Flat Drop |
| Fiber Type | Singlemode (Corning SMF-28 Ultra) |
| Cable Length | 150 feet |
| Connector Type | 1 ZTAP (H-Compatible) |
| Toneable | Yes |
Frequently Asked Questions
What does "toneable" mean in this context?
The cable includes an integrated metallic wire that allows utility technicians to use an electronic locating tool to trace the path of the buried fiber cable underground.
Is the ZTAP connector compatible with other H-style connectors?
Yes, the ZTAP connector is designed to be fully compatible with industry-standard H-style hardened connector ports found on most NIDs and MSTs.
What is the benefit of Corning SMF-28 Ultra fiber?
It is a bend-insensitive singlemode fiber that minimizes signal loss when the cable is routed through tight corners or bundled during installation.
How many splices are required for this assembly?
Typically, only two fusion splices are required to integrate this assembly into the existing outside plant infrastructure.
Can this cable be used for both aerial and buried applications?
This flat drop cable is specifically engineered for rugged outdoor environments, providing durability for various drop deployment scenarios.
