Overview

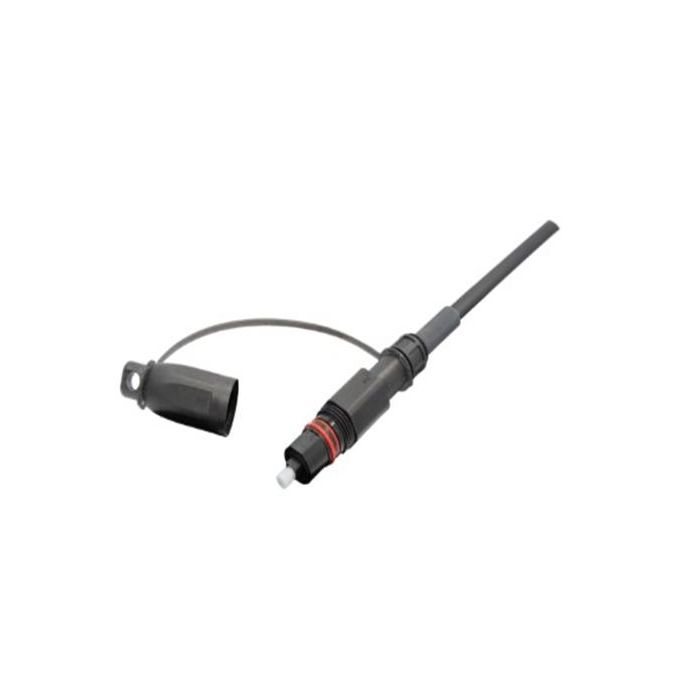

The Zeus Flat Drop Cable Assembly is a factory-terminated solution designed to simplify FTTx installations. This assembly features toneable flat drop cable construction, allowing for easy location of buried lines, and is integrated with high-performance Corning SMF-28 Ultra bend-insensitive singlemode fiber to ensure signal integrity even in tight-radius deployments.
This assembly includes one ZTAP connector, which is compatible with standard "H" style hardened connector interfaces. By utilizing pre-terminated assemblies, technicians can significantly reduce on-site deployment time, requiring only two fusion splices and a direct connection into the Network Interface Device (NID).
Key Features
-
Toneable Design
Integrated tracer wire allows for easy underground utility location and mapping. -
Corning SMF-28 Ultra Fiber
Utilizes industry-standard bend-insensitive fiber for enhanced performance in challenging routes. -
ZTAP Connector Interface
Designed for compatibility with existing "H"-style hardened drop cable systems. -
Pre-Terminated Assembly
Factory-polished and tested to ensure consistent signal quality and reduce field installation time. -
Simplified Installation
Supports a streamlined workflow requiring only two fusion splices per drop. -
Robust Construction
Flat drop architecture provides increased physical protection for the fiber core in outside plant environments.
Applications
- FTTx drop deployments
- Outdoor utility and telecommunications infrastructure
- MDU (Multi-Dwelling Unit) connectivity
- Last-mile fiber access networks
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Zeus |
| Part Number | ZDCT-1-HIP-P-400 |
| Fiber Type | Singlemode (Corning SMF-28 Ultra) |
| Connector Type | ZTAP (H-Compatible) |
| Cable Type | Flat Drop, Toneable |
| Cable Length | 400 feet |
Frequently Asked Questions
What does "toneable" mean?
A toneable cable includes an integrated metallic wire that allows contractors to use a signal generator to trace the buried path of the fiber optic cable.
Is the ZTAP connector compatible with other H-style systems?
Yes, the ZTAP connector is designed to be compatible with standard "H"-style hardened connector environments used in many FTTx deployments.
What type of fiber is used in this assembly?
This cable uses Corning SMF-28 Ultra fiber, which is a G.657.A1 bend-insensitive singlemode fiber.
Can this cable be used for direct burial?
Flat drop cables are typically designed for outside plant use, but specific burial depth and conduit requirements should be verified against local codes.
How many connectors are on this cable?
This specific part number includes one ZTAP connector, configured as a pigtail assembly.
