Overview

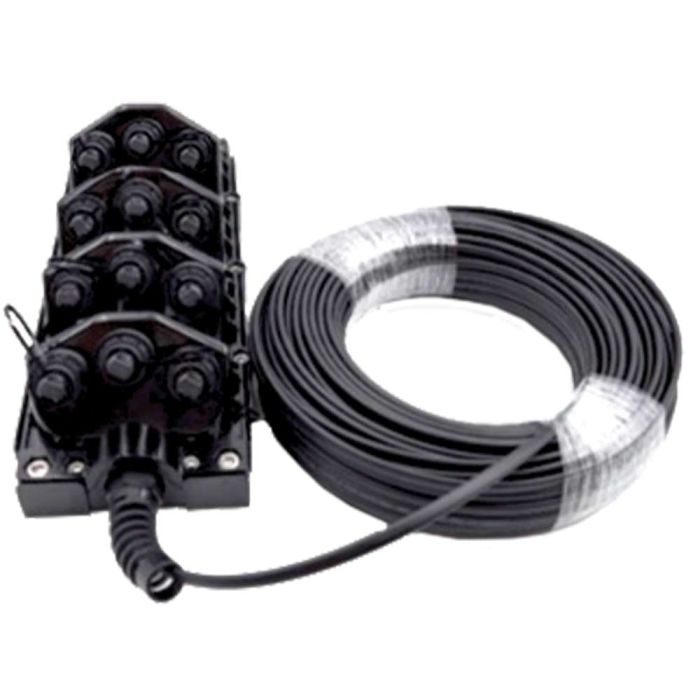

The Zeus Multiport Service Terminal (MST) is an integrated enclosure designed to protect fiber connections within rugged outside plant environments. This terminal utilizes hardened ZTAP connector technology to ensure high-performance signal integrity in demanding outdoor conditions.
The unit comes factory-loaded with a 12-port configuration and includes 1000 feet of ruggedized flat drop cable. Engineered for durability, the enclosure provides IP68-rated protection against water and dust ingress, making it an ideal solution for FTTH and FTTA infrastructure, trunk cable connections, or specialized military communication deployments.
Key Features
-
IP68 Protection
Features a hermetically sealed design to prevent water and dust ingress for long-term reliability. -
High Tensile Strength
Engineered to withstand pulling forces up to 1200N, ensuring cable integrity during installation. -
Hardened Interface
Utilizes ZTAP connector technology designed for rugged outside plant performance. -
Factory Integrated
Pre-loaded with 1000 feet of ruggedized flat drop cable, reducing on-site installation time. -
Versatile Capacity
Equipped with 12 ports for single or multi-fiber harsh environment connectivity. -
Flexible Configuration
Can be supplied with integrated PLC splitters or splice sleeves to support diverse network architectures.
Applications
- Fiber-to-the-Home (FTTH)
- Fiber-to-the-Antenna (FTTA)
- Trunk cable interconnects
- Military communications
- Prospecting networks
Technical Specifications
| Specification | Value |
|---|---|
| Model | Z1-MST-12-YA-P-1000 |
| Port Count | 12 |
| Connector Type | SC/APC |
| Cable Length | 1000' |
| Ingress Protection | IP68 |
| Pulling Force Rating | 1200N |
Frequently Asked Questions
What is the primary purpose of the Zeus MST Box?
It is designed to provide secure, environmentally protected fiber distribution points in outside plant applications like FTTH.
Does the unit come with cable?
Yes, this specific model includes 1000 feet of ruggedized flat drop cable.
What level of weather protection is provided?
The enclosure is rated IP68, providing high-level protection against dust and water submersion.
Can I use this for military applications?
Yes, the robust design is suited for prospecting and military communication environments.
What connector type is used in this 12-port terminal?
This model features SC/APC connectors.
