Overview

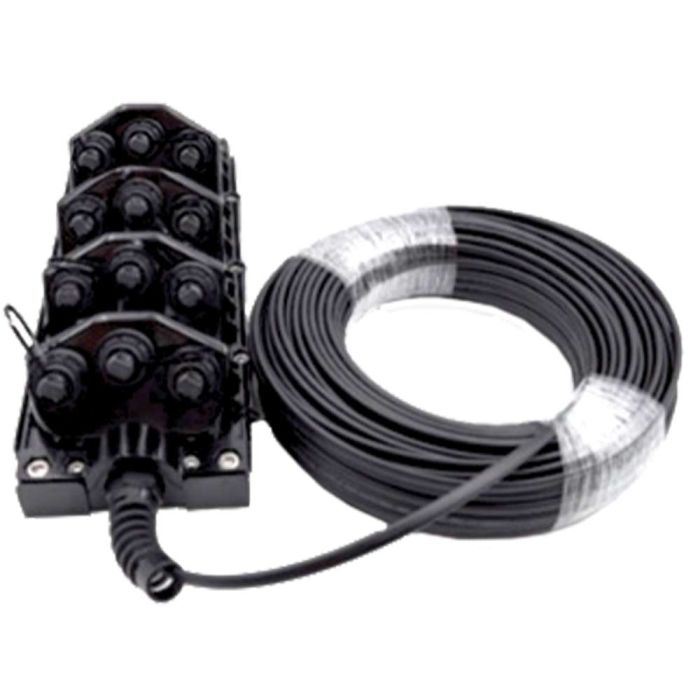

The Zeus Multiport Service Terminal (MST) is a hardened fiber management solution designed for deployment in rugged outside plant (OSP) environments. This enclosure is engineered to provide a robust, reliable interface for fiber-to-the-x (FTTX) and fiber-to-the-antenna (FTTA) applications, serving as a critical distribution point in the network.
Each unit comes pre-loaded with high-quality connectivity ports and includes 250 feet of ruggedized flat drop cable. Built to withstand demanding conditions, the enclosure features an IP68-rated seal to prevent water and dust ingress and supports long-term structural integrity under pulling forces up to 1200N.
Key Features
-
IP68 Environmental Protection
Ensures complete resistance against water and dust ingress, protecting internal fiber connections in harsh outdoor conditions. -
High Tensile Strength
Capable of withstanding up to 1200N of pulling force, making it suitable for demanding long-term aerial or underground installations. -
12-Port Capacity
Provides 12 individual ports for efficient distribution and scaling in high-density outside plant networks. -
Factory-Sealed Integrity
Supplied factory-sealed to reduce installation time and maintain consistent performance standards in the field. -
Hardened Connector Technology
Features ruggedized ZTAP technology designed to interface reliably within outdoor environments. -
Integrated Fiber Management
Available with options for PLC splitters or splice sleeves, allowing for flexible fiber division within the terminal.
Applications
- FTTH (Fiber to the Home) field deployments
- FTTA (Fiber to the Antenna) installations
- Trunk cable connection points
- Military communication networks
- Prospecting site infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Model | Zeus MST Box |
| Part Number | Z1-MST-12-YA-P-250 |
| Port Count | 12 Ports |
| Connector Type | SC/APC |
| Cable Type | Ruggedized Flat Drop Cable |
| Cable Length | 250 Feet |
| Ingress Protection | IP68 |
| Max Pulling Force | 1200N |
Frequently Asked Questions
Is this terminal suitable for underground use?
Yes, the IP68 rating indicates the enclosure is protected against dust and water immersion, making it suitable for harsh OSP environments including underground installations.
Can the ports accept different connector types?
The system features high compatibility and can be configured to support various industry-standard hardened connectors, including H-connectors, Mini SC, ODC, and others.
Does this include a splitter?
The unit is designed to be available with either PLC splitters or fiber splice sleeves to support fiber division requirements.
What is the maximum pulling force this unit can handle?
The enclosure is designed to maintain structural integrity under pulling forces of up to 1200N for long-term deployments.
Is field assembly possible?
The terminal is available as a factory-sealed unit but is also designed to accommodate field assembly requirements.
