Overview

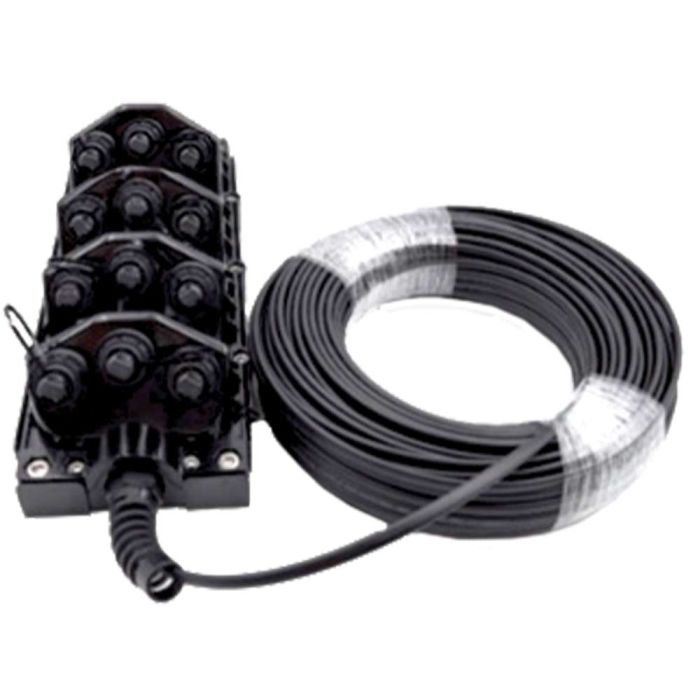

The Zeus Multiport Service Terminal (MST) is designed for reliable fiber distribution in rugged outside plant environments. This terminal integrates hardened connector technology to provide a robust interface for fiber-to-the-x (FTTX) and fiber-to-the-antenna (FTTA) deployments.
Each unit comes pre-loaded in a 12-port enclosure configuration, featuring ruggedized flat drop cable. The system is engineered to maintain signal integrity while protecting connections against environmental elements, ensuring long-term deployment success in demanding outdoor conditions.
Key Features
-
IP68 Protection
Features high-level water and dust ingress protection for durability in harsh outdoor environments. -
High Tensile Strength
Capable of withstanding up to 1200N of pulling force for reliable long-term cable management. -
Versatile Connectivity
Compatible with ODVA, H-connector (OptiTap compatible), Mini SC, ODC, PTLC, PTMPO, and power adapters. -
Flexible Configuration
Available in factory-sealed or field-assembly options to suit specific project requirements. -
High-Density Design
Provides 12 ports for single or multi-fiber harsh environment connectors in a compact footprint. -
Flexible Integration
Includes options for PLC splitters or splice sleeves to facilitate efficient fiber division.
Applications
- FTTH (Fiber to the Home) field
- FTTA (Fiber to the Antenna) field
- Trunk cable connecting
- Prospecting or military communication
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z1-MST-12-YA-P-500 |
| Port Count | 12 Ports |
| Connector Type | SC/APC |
| Cable Length | 500 ft |
| Protection Rating | IP68 |
| Pulling Force | 1200N |
Frequently Asked Questions
What is the primary use for this MST box?
This box is primarily used for FTTX and FTTA field applications, providing a secure connection point for outdoor fiber distribution.
What is the IP rating of the enclosure?
The enclosure is rated IP68, providing high protection against water and dust ingress.
Is this unit compatible with OptiTap connectors?
Yes, it is compatible with H-connectors which are OptiTap compatible, as well as several other connector types like Mini SC and ODC.
How much pulling force can the cable withstand?
The unit is designed to work under a long-term pulling force of up to 1200N.
Can I use this for military communications?
Yes, it is designed to support prospecting and military communication applications due to its rugged build.
