Overview

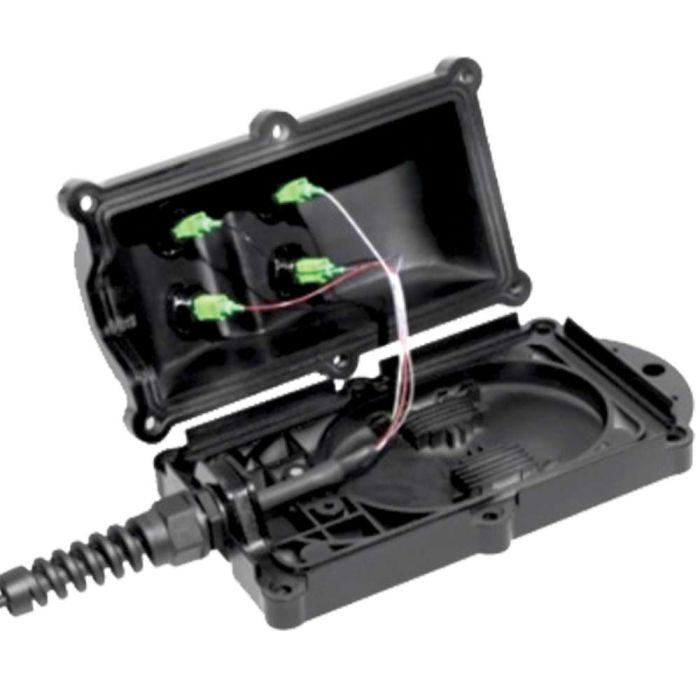

The Zeus Multiport Service Terminal (MST) is designed to provide high-density fiber connectivity in demanding outside plant environments. This terminal is engineered to facilitate quick and reliable distribution in FTTx networks, utilizing hardened connector technology to protect against environmental hazards.
The unit comes factory-loaded with four ports and is integrated with a 100-foot ruggedized flat drop cable. Its construction is built to withstand significant physical stress while maintaining optical integrity, making it an appropriate choice for aerial, pedestal, or underground deployment.
Key Features
-
Environmental Protection
Features IP68-rated housing to provide complete protection against water ingress and dust contamination in outdoor environments. -
High Durability
Designed to withstand up to 1200N of long-term pulling force, ensuring cable integrity during and after installation. -
Hardened Connector Technology
Utilizes ZTAP hardened interfaces to minimize connection points and ensure compatibility with standardized outdoor connector systems. -
Versatile Port Configuration
Available in a 4-port configuration to support scalable fiber distribution based on specific network area requirements. -
Factory-Sealed Integrity
Delivered factory-sealed to reduce the need for on-site field assembly and minimize the risk of environmental contamination. -
Deployment Flexibility
Compatible with various connector types including ODVA, Mini SC, ODC, PTLC, and PTMPO to fit diverse hardware requirements.
Applications
- FTTH (Fiber to the Home) networks
- FTTA (Fiber to the Antenna) field deployments
- Trunk cable connecting
- Prospecting and military communication systems
Technical Specifications
| Specification | Value |
|---|---|
| Model | Z1-MST-04-YA-P-100 |
| Port Count | 4 |
| Connector Type | SC/APC |
| Cable Length | 100 ft |
| IP Rating | IP68 |
| Pulling Force | 1200N |
Frequently Asked Questions
What does the IP68 rating mean for this terminal?
The IP68 rating indicates that the enclosure is dust-tight and capable of being submerged in water under specified conditions without damage to the internal fiber components.
Can I use this terminal for field assembly?
While this unit is factory-sealed for reliability, it is also designed to support field assembly requirements if necessary for specific installation scenarios.
Is this terminal compatible with OptiTap connectors?
Yes, this unit supports H-connectors, which are compatible with the OptiTap standard.
What is the primary purpose of the integrated pigtail?
The integrated pigtail provides a pre-terminated interface, significantly reducing installation time and eliminating the need for on-site fusion splicing at the terminal connection point.
Can this terminal be used in military applications?
Yes, the robust construction and high-pulling force tolerance make it suitable for rugged communication deployments, including military and prospecting field use.
