Overview

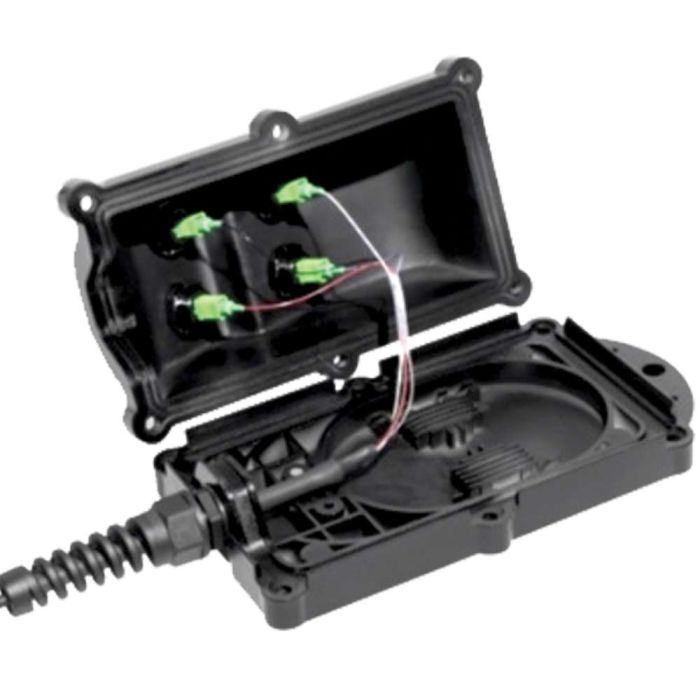

The Zeus Multiport Service Terminal (MST) is a ruggedized fiber distribution enclosure designed specifically for outside plant (OSP) environments. This 4-port terminal provides a reliable interface for fiber connectivity in harsh conditions, ensuring signal integrity in demanding field applications.
Engineered for durability, the unit features an IP68-rated housing that provides complete protection against water and dust ingress. It is constructed to withstand long-term tensile loads of up to 1200N, making it suitable for aerial, buried, or pedestal installations where environmental resilience is critical.
Key Features
-
IP68 Environmental Protection
The enclosure is fully sealed against water and dust, preventing internal fiber damage in extreme weather. -
High Tensile Strength
Rated for 1200N of pulling force, ensuring cable stability during deployment and operation. -
Hardened Connector Technology
Utilizes ZTAP hardened interfaces to minimize signal loss and provide secure connections. -
Port Versatility
The 4-port configuration supports various hardened connector types, including SC/APC for precise optical alignment. -
Pre-Loaded Assembly
Comes pre-configured with 2000' of ruggedized flat drop cable to accelerate field installation. -
Scalable Internal Options
The terminal can accommodate PLC splitters or splice sleeves, allowing for flexible network architecture.
Applications
- FTTH (Fiber-to-the-Home) networks
- FTTA (Fiber-to-the-Antenna) deployments
- Trunk cable connections
- Prospecting and military communication systems
Technical Specifications
| Specification | Value |
|---|---|
| Model | Zeus MST |
| Part Number | Z1-MST-04-YA-P-2000 |
| Port Count | 4 |
| Connector Type | SC/APC |
| Cable Length | 2000 ft |
| Environmental Rating | IP68 (Water and Dust) |
| Max Pulling Force | 1200 N |
Frequently Asked Questions
What does the IP68 rating mean for this terminal?
The IP68 rating indicates that the MST box is fully protected against dust ingress and is capable of being submerged in water under specified conditions, making it ideal for harsh outdoor environments.
Can I use this for aerial installations?
Yes, the unit's 1200N tensile strength allows it to withstand the mechanical stresses typically found in aerial deployment scenarios.
Are there internal options for splitting signals?
Yes, the enclosure is available with integrated PLC splitters or splice sleeves to facilitate fiber division within the terminal.
What types of connectors are compatible?
The terminal supports various connectors, including ODVA, H-connector (OptiTap compatible), Mini SC, ODC, PTLC, and PTMPO styles.
Is the unit pre-assembled?
The Zeus MST is provided as a factory-sealed unit with 2000' of ruggedized flat drop cable attached, reducing the need for on-site termination.
