Overview

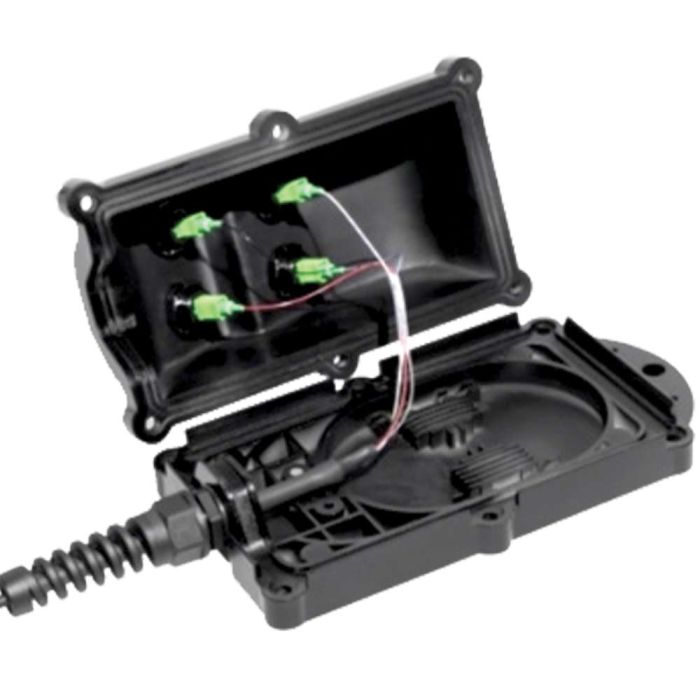

The Zeus Multiport Service Terminal (MST) is a ruggedized fiber distribution enclosure engineered for demanding outside plant environments. It features high-durability construction designed to protect critical fiber connections from environmental hazards, moisture, and dust, ensuring reliable performance in harsh field conditions.
This 4-port terminal comes pre-loaded and includes a 250-foot factory-ruggedized flat drop cable. The unit is optimized for FTTH and FTTA applications, providing a secure interface for trunk cable connections in both prospecting and military communication deployments.
Key Features
-
IP68 Protection
Fully sealed housing provides complete protection against water ingress and dust, ensuring longevity in outdoor deployments. -
High Tensile Strength
Engineered to withstand up to 1200N of long-term pulling force, allowing for secure installation in aerial or underground routes. -
Connector Compatibility
Supports various hardened connector interfaces, including OptiTap (H connector), Mini SC, ODC, PTLC, and PTMPO. -
Flexible Configuration
Available as a factory-sealed unit or for field assembly to accommodate diverse project requirements. -
Integrated Fiber Management
Internal capacity allows for the inclusion of PLC splitters or fusion splice sleeves, simplifying signal distribution. -
High Port Density
Compact 4-port design allows for efficient subscriber connectivity in limited-space enclosures.
Applications
- Fiber to the Home (FTTH) networks
- Fiber to the Antenna (FTTA) systems
- Trunk cable distribution
- Military and prospecting communications
Technical Specifications
| Specification | Value |
|---|---|
| Model | Z1-MST-04-YA-P-250 |
| Port Count | 4 Ports |
| Connector Type | SC/APC |
| Cable Length | 250 feet |
| Ingress Protection | IP68 |
| Tensile Rating | 1200N |
Frequently Asked Questions
What does the IP68 rating mean for this terminal?
The IP68 rating indicates that the enclosure is dust-tight and protected against the effects of continuous immersion in water, making it suitable for harsh outdoor environments.
Can I use this terminal for FTTA applications?
Yes, the terminal is specifically designed for both FTTH and FTTA (Fiber to the Antenna) field environments.
What type of cable is included?
This unit includes 250 feet of factory-ruggedized flat drop cable.
Does this terminal support splitters?
Yes, the internal design allows for the inclusion of PLC splitters or fiber splice sleeves depending on your network requirements.
Is this connector compatible with OptiTap?
Yes, the terminal supports a variety of hardened connectors, including those compatible with OptiTap standards.
