Overview

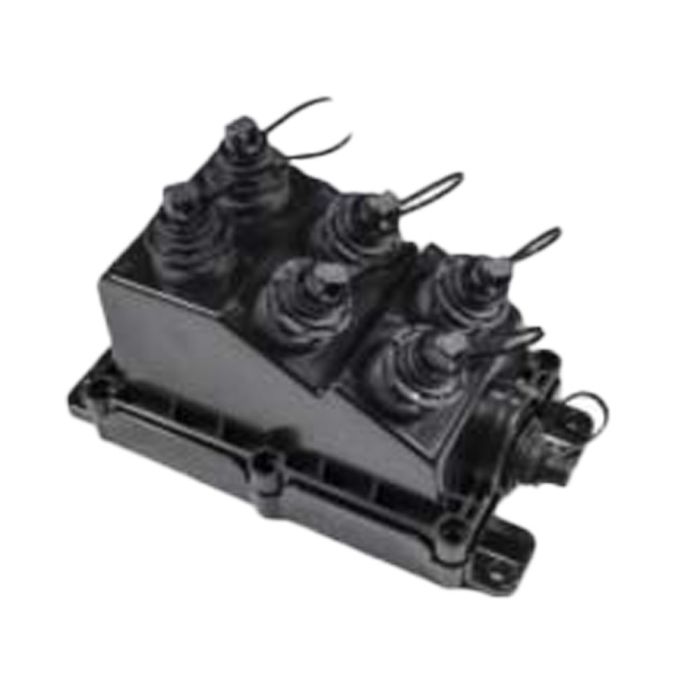

The Zeus MST Box is an economical, high-density fiber distribution terminal engineered specifically for challenging outdoor deployments. Designed for versatility, this 6-port enclosure serves as a robust connection point for FTTH, FTTA, and military communication infrastructures, providing a secure transition between trunk cables and drop networks.
Constructed to meet rigorous environmental demands, the unit features an IP68-rated seal, ensuring comprehensive protection against water and dust ingress. Its durable housing is built to withstand significant mechanical stress, maintaining network integrity even when subjected to 1200N of long-term pulling force.
Key Features
-
IP68 Protection
Features a sealed enclosure design that prevents water and dust ingress, ensuring operation in harsh environmental conditions. -
High Tensile Strength
Engineered to withstand up to 1200N of long-term pulling force, allowing for secure deployment in aerial or heavy-duty environments. -
Flexible Mounting Options
Adaptable housing supports wall, pole, or aerial installations, providing installation versatility for diverse site requirements. -
Versatile Port Configuration
Equipped with 6 ports compatible with a variety of connector types including Mini SC, ODVA, and H-type connectors. -
Integrated Connectivity
Includes pigtail connectivity options to streamline field deployment and reduce installation time. -
FTTX Versatility
Designed for multi-purpose use across FTTH and FTTA applications, offering a unified solution for fiber distribution needs.
Applications
- FTTH (Fiber to the Home) networks
- FTTA (Fiber to the Antenna) installations
- Trunk cable connection points
- Military field communications
- Prospecting site connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | Z1-MST-06-YA-P-1000 |
| Port Count | 6 |
| Connector Type | SC/APC |
| Cable Length | 1000 FT |
| Ingress Protection | IP68 |
| Max Pulling Force | 1200N (Long Term) |
Frequently Asked Questions
Is this enclosure suitable for pole mounting?
Yes, the enclosure is designed for wall, pole, and aerial installation applications.
What is the IP rating for this box?
The unit is rated IP68, providing high-level protection against dust and water ingress.
Can I use this for FTTA projects?
Yes, this enclosure is compatible with both FTTH and FTTA network requirements.
What is the maximum pulling force supported?
The housing is rated for a 1200N long-term pulling force.
Does this include factory-sealed ports?
The system supports both factory-sealed and field-assembly configurations depending on your specific requirements.
