Overview

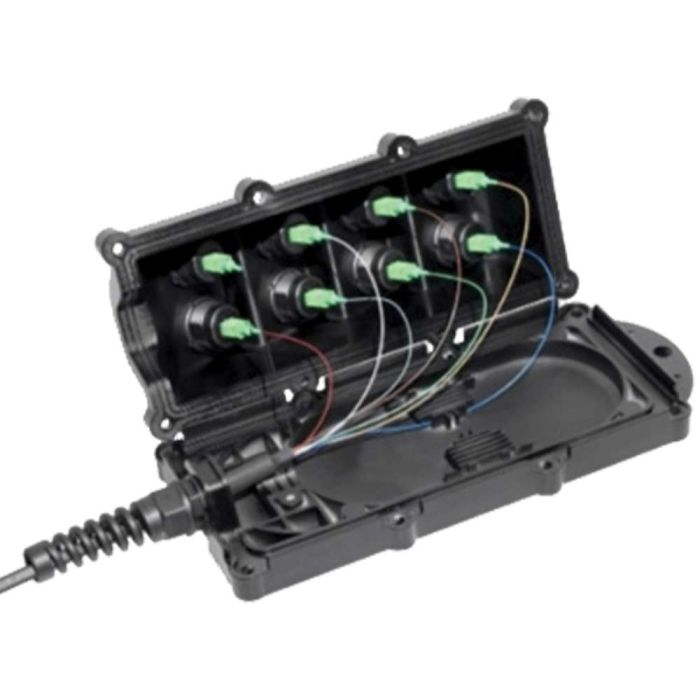

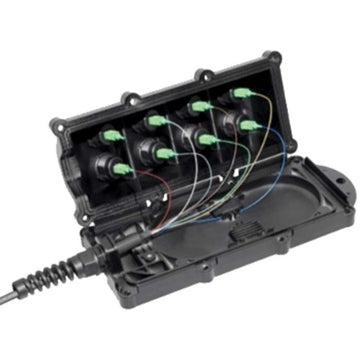

The Zeus Multiport Service Terminal (MST) is an engineered fiber distribution solution designed to facilitate high-density fiber connectivity in rugged outside plant environments. It features pre-loaded, hardened interface technology, often referred to as ZTAP, to ensure reliable performance against environmental exposure.
This 8-port enclosure is constructed to provide robust protection in challenging field conditions. It is supplied with an integrated pigtail assembly, utilizing hardened flat drop cable to ensure a secure and consistent connection in fiber-to-the-x (FTTX) deployment architectures.
Key Features
-
IP68 Environmental Protection
Designed with high-level water and dust resistance to prevent ingress in harsh outdoor environments. -
High Tensile Strength
Capable of withstanding a long-term pulling force of up to 1200N for secure installation. -
Hardened Connectivity
Utilizes hardened connector technology for reliable, repeatable performance in the field. -
Versatile Port Configuration
Supports a range of single or multi-fiber harsh environment connectors. -
Flexible Internal Routing
Available with options for integrated PLC splitters or fusion splice sleeves. -
Factory-Sealed Integrity
Designed for either factory-sealed performance or simplified field assembly.
Applications
- FTTH (Fiber to the Home) field deployments
- FTTA (Fiber to the Antenna) field applications
- Trunk cable interconnection
- Military and prospecting communication networks
Technical Specifications
| Specification | Value |
|---|---|
| Model Series | Zeus MST |
| Port Count | 8 Port |
| Connector Type | SC/APC |
| Cable Length | 250 ft |
| Ingress Protection | IP68 |
| Max Pulling Force | 1200 N |
Frequently Asked Questions
What does the IP68 rating mean for this enclosure?
The IP68 rating indicates that the unit is dust-tight and protected against the effects of immersion in water, ensuring reliable operation in harsh outside plant environments.
Can I use this for FTTA deployments?
Yes, the Zeus MST is designed for use in both FTTH and FTTA field environments.
What is the maximum pulling force the unit can withstand?
The enclosure is engineered to handle up to 1200N of pulling force for long-term installation.
Does this unit come pre-terminated?
Yes, it is configured with an SC/APC pigtail assembly.
Is this compatible with OptiTap connectors?
The terminal supports various hardened connector types including H-connectors that are compatible with the OptiTap standard.
